Description

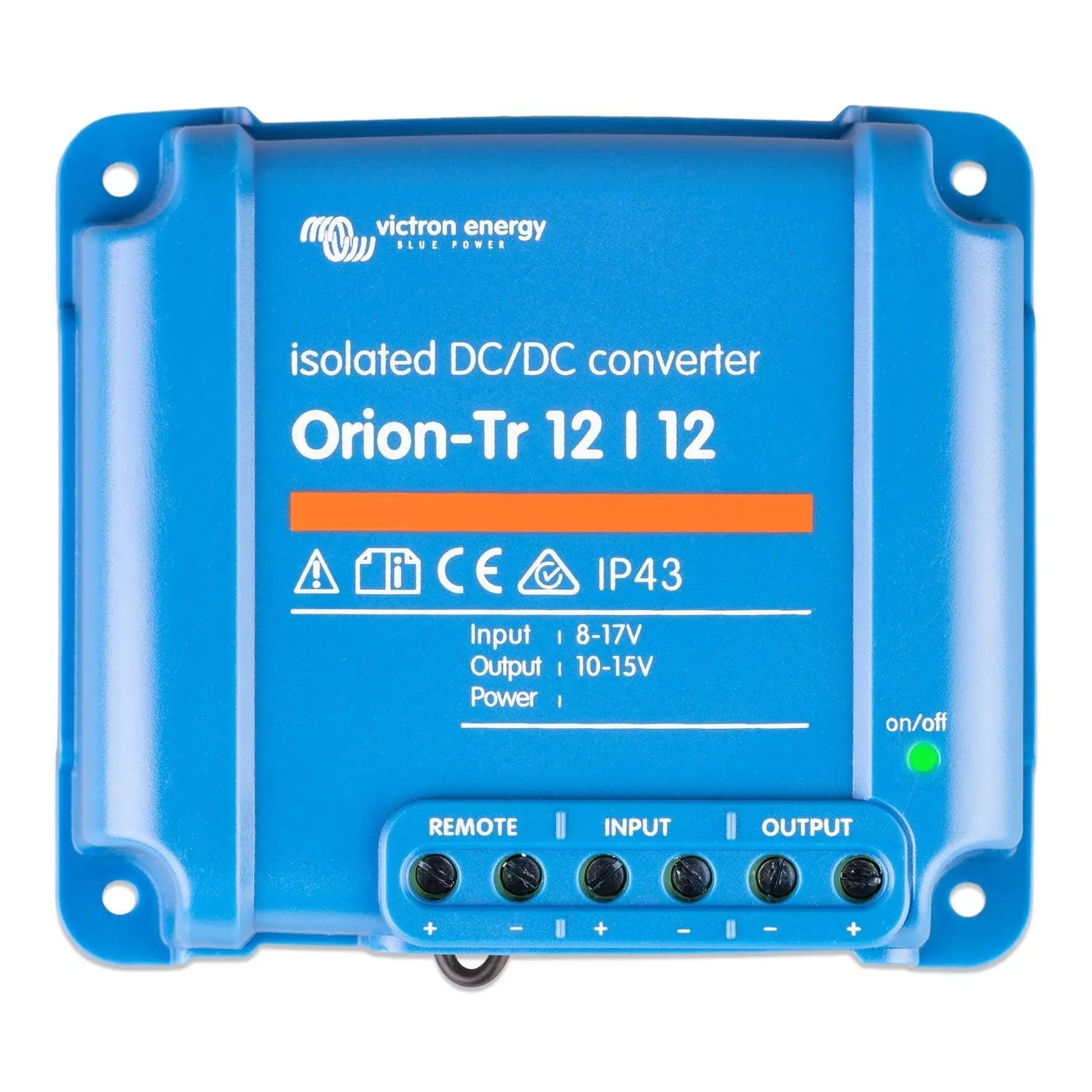

xOrion-Tr 12/12-18A (220W) Isolated DC-DC Converter — ORI121222110
The Victron Orion-Tr 12/12-18A is a galvanically isolated DC-DC converter rated at 220W, designed to step between 12V sources and 12V loads while maintaining full electrical isolation between input and output. It is suited to marine, vehicle and off-grid installations where two separate 12V battery banks must be kept electrically independent.
Key Features
- Galvanic isolation between input and output eliminates ground loop issues and protects sensitive electronics from voltage spikes on the source circuit.
- 18A continuous output current at 12V delivers up to 220W of regulated DC power.
- Wide input voltage range accommodates real-world battery voltages across charge and discharge cycles.
- Compact, enclosed housing with a weight of 1.15 kg makes it practical for installation in confined spaces such as engine bays or under-seat compartments.
- Fixed output voltage suitable for direct battery charging or powering 12V DC loads from a separate source bank.
- No moving parts and fully solid-state design means no maintenance requirements in service.
Product Overview
Galvanic isolation is the key distinction of the Orion-Tr range over non-isolated DC-DC converters. In a dual-battery system on a boat or motorhome, connecting two banks without isolation can allow fault currents to flow between them and introduces the risk of ground loops that cause interference in audio, navigation or communication equipment. The Orion-Tr 12/12-18A prevents this by using a transformer-based topology that keeps the two circuits completely separate electrically.
At 220W continuous output, this unit is capable of charging a secondary 12V service battery from a starter battery, or supplying a 12V DC distribution circuit from a solar or shore-power-fed house bank. The 18A output is sufficient for most auxiliary charging and load-supply applications in leisure, commercial vehicle and small off-grid installations. Because the output voltage is regulated, the converter maintains a stable output regardless of minor fluctuations on the input side.
Technical Specifications
| Parameter | Value |
| SKU | ORI121222110 |
| Input Voltage (nominal) | 12V DC |
| Output Voltage (nominal) | 12V DC |
| Output Current (continuous) | 18A |
| Output Power | 220W |
| Isolation | Galvanic (transformer-based) |
| Weight | 1.15 kg |
| GTIN | 8719076035237 |
Applications
- Charging a 12V service battery from a 12V starter battery on boats, motorhomes and campervans, with full electrical isolation between banks.
- Supplying a 12V DC load circuit from a separate battery bank where ground loop prevention is required.
- Off-grid cabins and vehicles where two independently earthed 12V systems must exchange power without a shared ground reference.
- Commercial vehicle auxiliary power systems requiring regulated 12V output from the vehicle's main electrical system.
- Marine installations where ABYC or similar standards require isolation between battery banks.
What Is Included
- 1 x Victron Orion-Tr 12/12-18A (220W) Isolated DC-DC Converter
Installation Notes
Installation should be carried out by a qualified electrician or experienced marine/vehicle electrical engineer. Ensure input and output wiring is correctly rated for the continuous current draw and that appropriate fusing is fitted on both the input and output circuits. The unit must be mounted in a ventilated location away from direct water ingress. For marine installations, follow the relevant wiring standards for your vessel type. Do not exceed the specified input voltage range.
