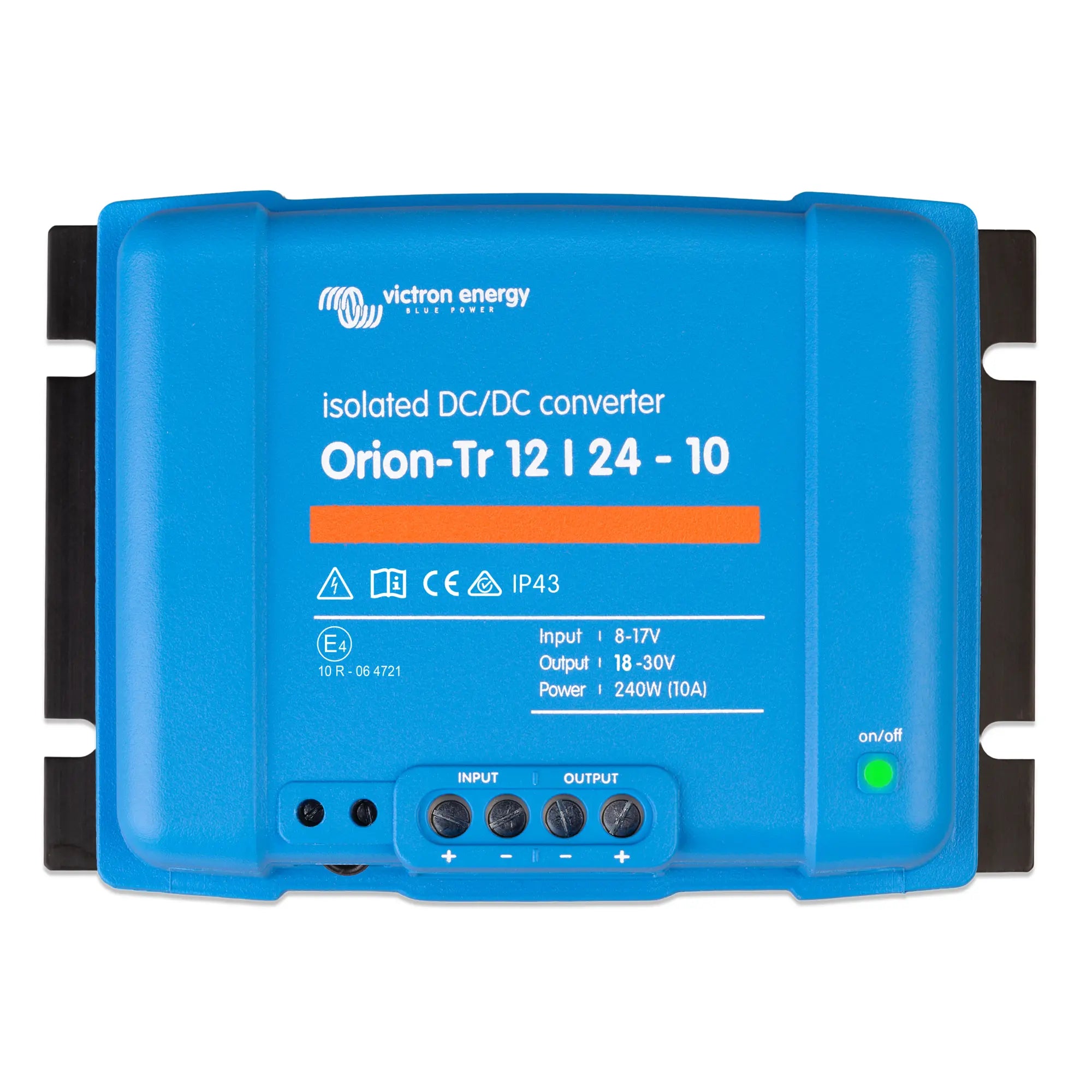

xVictron Orion-Tr 12/24-10A (240W) Isolated DC-DC Converter
The Victron Orion-Tr 12/24-10A is a galvanically isolated DC-DC converter that steps a 12V supply up to a regulated 24V output at up to 10A (240W). It is designed for professional installations where electrical isolation between input and output circuits is required, such as vehicle, marine and off-grid applications.
Key Features
- Galvanic isolation between input and output eliminates ground loop issues and protects sensitive electronics from voltage spikes on the source circuit.
- 12V input to 24V output conversion at up to 10A continuous output current, delivering 240W of regulated DC power.
- Wide input voltage range accommodates real-world battery conditions including partial charge and engine-running voltage levels.
- Compact, enclosed housing with a weight of 1.3kg, suitable for installation in confined spaces on vehicles, vessels and off-grid enclosures.
- Part of the Victron Orion-Tr range, which is designed for reliable DC-DC conversion in demanding mobile and fixed installations.
- Output voltage is adjustable, allowing fine-tuning to match the requirements of the connected load or battery bank.
Product Overview
The Orion-Tr isolated DC-DC converter range addresses a common problem in dual-voltage systems: how to power 24V equipment or charge a 24V battery from a 12V source without creating an electrical connection between the two circuits. Galvanic isolation means the input and output share no common ground, which is particularly important on boats and vehicles where chassis grounds can introduce noise, corrosion currents or fault paths.
At 240W continuous output, the Orion-Tr 12/24-10A is well suited to charging auxiliary 24V battery banks, powering 24V DC loads, or supplying 24V equipment from a 12V vehicle or solar system. The adjustable output voltage gives installers the flexibility to set the correct charge or supply voltage for the connected equipment without relying on fixed factory defaults.
Victron's Orion-Tr converters use a high-frequency switching topology that keeps the unit compact and efficient. The enclosed housing protects internal components from dust and moisture ingress, making it appropriate for the variable environments typical of marine, motorhome and off-grid cabinet installations.
Specifications
- SKU: ORI122424110
- Input voltage: 12V nominal
- Output voltage: 24V nominal (adjustable)
- Output current: 10A maximum
- Output power: 240W
- Isolation: Galvanic (isolated DC-DC)
- Weight: 1.3kg
- GTIN: 8719076035244
Applications
- Charging a 24V auxiliary battery bank from a 12V vehicle or boat electrical system.
- Powering 24V DC loads from a 12V solar or battery system where isolation is required.
- Dual-voltage marine installations where galvanic isolation is needed to prevent corrosion currents between circuits.
- Motorhome and campervan conversions requiring a regulated 24V supply from a 12V leisure battery.
- Off-grid cabinet installations supplying 24V equipment from a 12V battery bank.
What Is Included
- 1x Victron Orion-Tr 12/24-10A (240W) Isolated DC-DC Converter
Installation Notes
Installation should be carried out by a qualified electrician or experienced systems integrator familiar with DC power systems. Ensure input and output wiring is correctly rated for the current involved and that appropriate fusing is fitted on both the input and output circuits. On marine installations, follow NMEA or flag-state wiring standards as applicable. The galvanic isolation of this unit does not replace the need for correct system earthing and bonding practices.
