Description

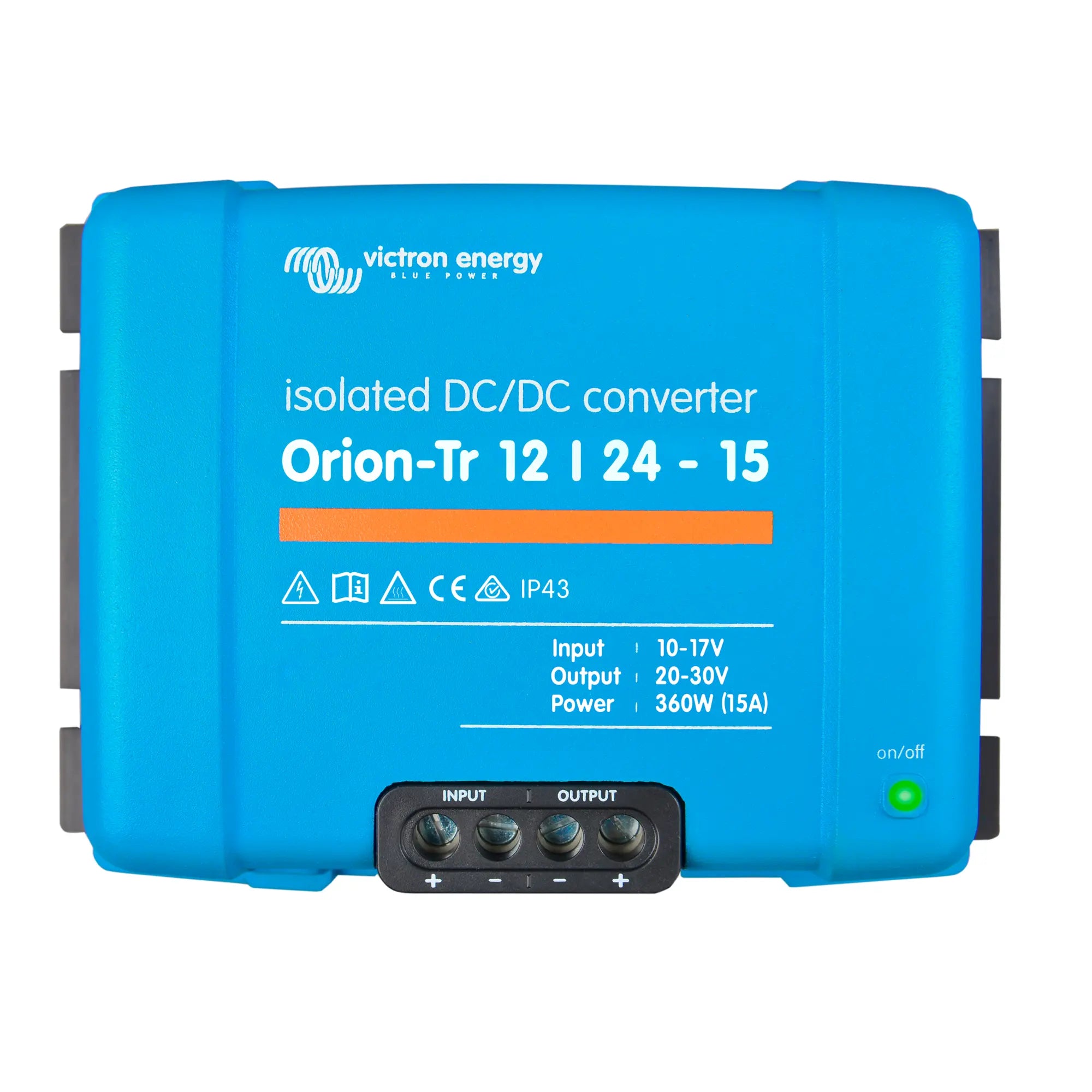

xOrion-Tr 12/24-15A (360W) Isolated DC-DC Converter
The Victron Orion-Tr 12/24-15A is a galvanically isolated DC-DC converter that steps up a 12V supply to a regulated 24V output at up to 15A (360W). It is designed for professional mobile, marine and off-grid installations where two battery banks must remain electrically isolated from one another.
Key Features
- Galvanic isolation between input and output prevents ground loops and protects sensitive electronics.
- 360W continuous output power from a 12V input to a regulated 24V output at 15A.
- Wide input voltage range accommodates fluctuating battery voltages typical in real-world installations.
- Compact, aluminium enclosure with a weight of 1.8kg suits space-constrained installations.
- Compatible with Victron VE.Smart networking when used alongside a compatible Bluetooth dongle for remote monitoring.
- Suitable for use with lead-acid and lithium battery chemistries on both input and output sides.
Product Overview
The Orion-Tr isolated range differs from non-isolated DC-DC converters in one critical respect: the input and output circuits share no common ground. This matters in dual-battery vehicle and marine installations where connecting two battery banks without isolation can cause charging faults, corrosion from stray currents, or damage to onboard electronics. The galvanic barrier eliminates these risks entirely.
At 360W continuous, this unit is well suited to charging a 24V service battery bank from a 12V starter battery circuit, or supplying a 24V load from a 12V source. The regulated output voltage holds steady regardless of input fluctuations, which is important when the input battery is under load from other consumers. The aluminium housing provides passive thermal management without requiring a fan, keeping the installation quiet and maintenance-free.
Specifications
- SKU: ORI122441110
- Input voltage: 12V DC (nominal)
- Output voltage: 24V DC (nominal)
- Output current: 15A
- Output power: 360W
- Isolation: Galvanic (isolated)
- Weight: 1.8kg
- GTIN: 8719076038832
Applications
- Charging a 24V service battery bank from a 12V vehicle or boat starter battery.
- Supplying 24V DC loads from a 12V battery system in campervans, motorhomes and coaches.
- Marine dual-battery installations requiring electrical isolation between banks.
- Off-grid cabins and mobile power systems with mixed-voltage DC distribution.
- Telecommunications and industrial equipment requiring a stable, isolated 24V supply.
What Is Included
- 1x Victron Orion-Tr 12/24-15A (360W) Isolated DC-DC Converter
Installation Notes
Installation should be carried out by a qualified electrician or experienced marine/vehicle electrical engineer. Ensure input and output wiring is correctly rated for the current draw and that appropriate fusing is fitted on both the input and output circuits. For marine installations, follow NMEA and RCD Directive wiring standards. Do not exceed the specified input voltage range. Lithium battery compatibility should be confirmed against the battery BMS specifications before installation.
