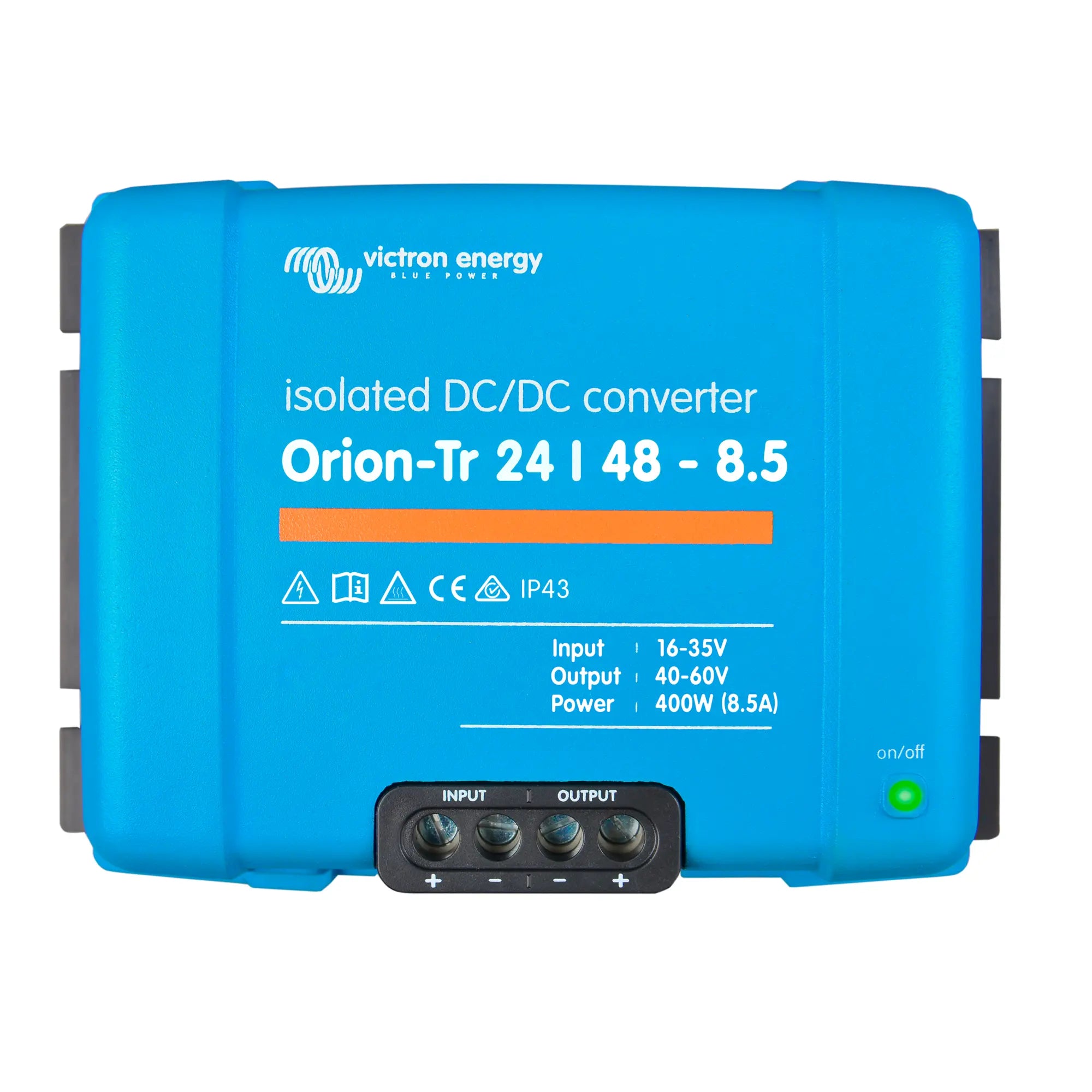

xVictron Orion-Tr 24/48-8.5A (400W) Isolated DC-DC Converter
The Victron Orion-Tr 24/48-8.5A is a galvanically isolated DC-DC converter that steps up a 24V DC input to a 48V DC output at up to 8.5A, delivering 400W of continuous power. It is designed for professional use in off-grid systems, marine and vehicle installations, and any application where two DC bus voltages must be bridged without an electrical connection between them.
Key Features
- Galvanic isolation between input and output, eliminating ground loop issues and allowing safe integration of separate DC systems.
- 24V input to 48V output conversion at 8.5A continuous output current, providing 400W of regulated DC power.
- Wide input voltage range typical of the Orion-Tr series, accommodating real-world battery voltage fluctuations without shutting down.
- Compact, enclosed metal housing suited to fixed installation in panels, enclosures and vehicle builds.
- Fully regulated output voltage, protecting connected 48V loads and battery banks from input-side voltage variation.
- Compatible with Victron system architectures, including installations monitored via VictronConnect where supported by associated equipment.
Product Overview
The Orion-Tr range uses a transformer-based isolated topology, which means the input and output circuits share no direct electrical path. This matters in practice when connecting two battery banks of different voltages, integrating a 48V inverter system with a 24V auxiliary supply, or working in marine environments where galvanic corrosion from ground loops is a genuine concern. The isolation barrier also provides a degree of protection against fault propagation between the two DC systems.
At 400W continuous, this converter is sized for meaningful loads: charging a 48V battery bank from a 24V source, powering 48V inverters or motor controllers from a 24V house bank, or supplying 48V DC distribution in a mixed-voltage system. The regulated output means the 48V side remains stable regardless of normal fluctuations on the 24V input, which is important when the input is a live battery under charge or discharge.
The Orion-Tr series is a well-established product line from Victron Energy, manufactured to consistent quality standards and widely used by professional installers across off-grid, marine, automotive and industrial applications. The isolated variants are the correct choice wherever electrical separation between input and output is a system requirement rather than an option.
Technical Specifications
| Parameter | Value |
| SKU | ORI244841110 |
| Input Voltage (nominal) | 24V DC |
| Output Voltage (nominal) | 48V DC |
| Output Current (maximum) | 8.5A |
| Output Power (continuous) | 400W |
| Isolation | Galvanic (transformer-based) |
| Weight | 1.52 kg |
| GTIN | 8719076038863 |
Applications
- Charging a 48V battery bank from a 24V alternator or battery source in vehicles, boats or off-grid systems.
- Supplying 48V inverters or motor controllers in mixed-voltage DC systems where a 24V primary bus is already established.
- Marine installations requiring galvanic isolation to prevent corrosion caused by ground loops between separate DC systems.
- Off-grid cabins and mobile setups where two independent battery banks at different voltages must be kept electrically separate.
- Industrial and telecoms enclosures requiring a stable, regulated 48V rail derived from a 24V supply.
What Is Included
- 1x Victron Orion-Tr 24/48-8.5A (400W) Isolated DC-DC Converter
Installation Notes
Installation should be carried out by a qualified electrician or experienced system integrator familiar with DC power systems. Ensure input wiring is correctly fused as close to the source battery as practicable, and that cable sizing is appropriate for the input current at 24V (which will be significantly higher than the 8.5A output current). The galvanic isolation means the output negative does not need to share a common ground with the input negative, but verify your system design before connecting. For marine installations, follow NMEA or flag-state wiring standards as applicable.
