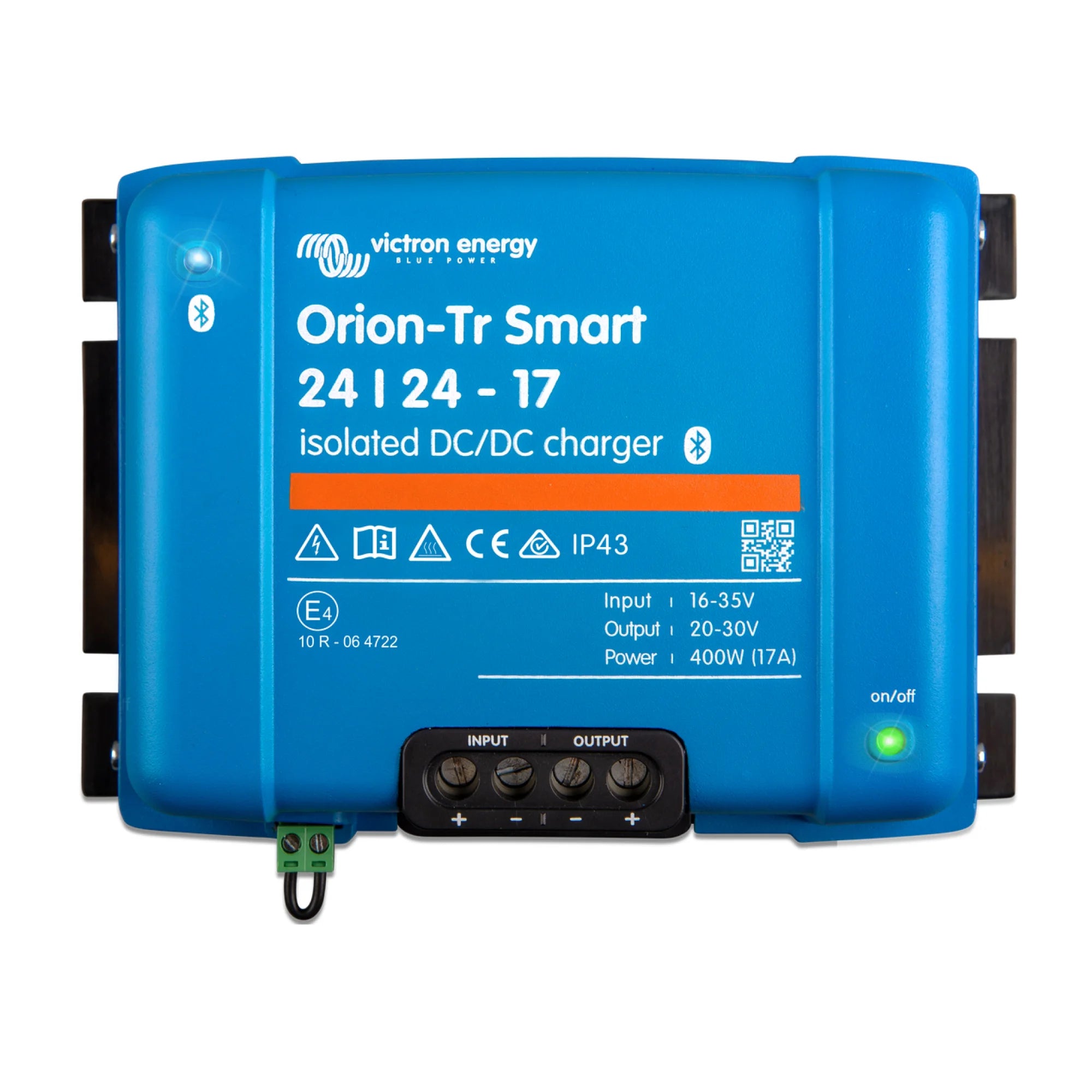

xVictron Orion-Tr Smart 24/24-17A (400W) Isolated DC-DC Charger
The Orion-Tr Smart 24/24-17A is a galvanically isolated DC-DC battery charger designed for 24V to 24V charging applications. It delivers up to 17A (400W) and is built for dual-battery systems in vehicles, vessels and off-grid installations where electrical isolation between the starter and service battery is required.
Key Features
- 400W output power with a 17A charge current on a 24V to 24V conversion.
- Galvanic isolation between input and output prevents ground loops and protects sensitive electronics.
- Built-in Bluetooth allows configuration and monitoring via the VictronConnect app on iOS and Android, with no additional hardware required.
- Adaptive charging algorithm with configurable charge profiles to suit different battery chemistries including lead-acid and lithium.
- Remote on/off input allows the unit to be controlled by a BMS, ignition switch or other external signal.
- Wide input voltage range handles fluctuating alternator output without interrupting the charge cycle.
- Compact, wall-mountable enclosure with a 1.8 kg weight suitable for space-constrained installations.
Product Overview
The Orion-Tr Smart uses a DC-DC conversion stage with full galvanic isolation, meaning the input (starter battery or alternator circuit) and output (service or auxiliary battery) share no electrical connection. This is particularly important in marine and vehicle installations where ground loops can cause corrosion, interference or damage to electronics. The isolation also allows the unit to be used where the two battery banks have separate negative rails.
Configuration is handled entirely through VictronConnect over Bluetooth. Charge voltage, absorption time, float voltage and tail current can all be adjusted to match the battery chemistry in use. This makes the unit compatible with standard flooded and AGM lead-acid batteries as well as lithium iron phosphate (LiFePO4) packs when used alongside an appropriate BMS. The remote on/off terminal allows the charger to be disabled when the engine is off, preventing discharge of the starter battery through the converter.
The unit is designed for continuous duty and can be mounted in any orientation. It does not require a fan, relying on its aluminium housing for passive thermal management in most conditions. At 400W it is well suited to topping up a service battery during transit or generator run time in a dual-battery setup.
Technical Specifications
| Parameter | Value |
| SKU | ORI242440120 |
| Input Voltage (nominal) | 24V DC |
| Output Voltage (nominal) | 24V DC |
| Maximum Output Current | 17A |
| Maximum Output Power | 400W |
| Isolation | Galvanic (isolated) |
| Connectivity | Bluetooth (VictronConnect) |
| Remote On/Off | Yes |
| Weight | 1.8 kg |
| GTIN | 8719076047728 |
Applications
- Charging a 24V service battery from a 24V vehicle or vessel starter circuit.
- Marine dual-battery systems where galvanic isolation is required to prevent corrosion and ground loops.
- Motorhome and campervan builds with separate chassis and habitation battery banks.
- Off-grid cabins and mobile installations where a DC source charges an auxiliary battery bank.
- Lithium service battery systems requiring a controlled charge profile separate from the alternator output.
What Is Included
- 1x Victron Orion-Tr Smart 24/24-17A (400W) Isolated DC-DC Charger
Installation Notes
Installation should be carried out by a qualified electrician or marine electrical engineer familiar with DC systems. Ensure correct cable sizing and fusing on both the input and output sides in accordance with the system current ratings. For lithium battery installations, connect the remote on/off terminal to the BMS load disconnect output to prevent charging outside safe voltage limits. In marine applications, follow NMEA and flag-state wiring standards where applicable. Victron recommends consulting the product installation manual before commissioning.
