Description

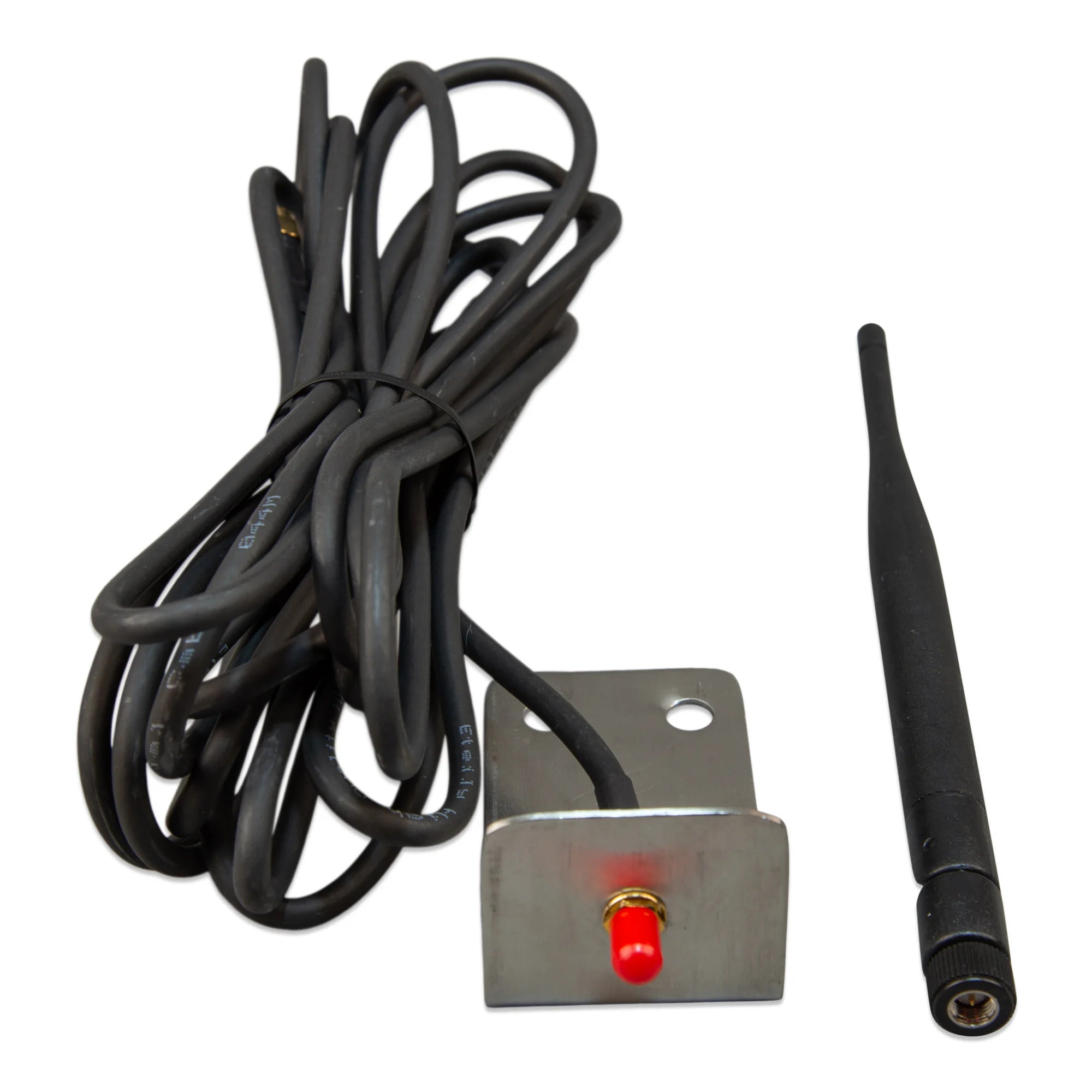

xOutdoor LTE-M Wall-Mount Antenna with 5m Cable
The Victron Outdoor LTE-M Wall-Mount Antenna is designed for use with Victron monitoring equipment that requires a cellular LTE-M connection. It is intended for installations where the standard internal antenna provides insufficient signal, particularly in rural, off-grid or industrial locations. The 5m cable gives enough reach to position the antenna on an exterior wall or other exposed surface for a stronger, more consistent signal.
Key Features
- Designed specifically for LTE-M frequency bands used by Victron cellular monitoring devices.
- Outdoor-rated construction suitable for permanent exterior wall mounting.
- Supplied with a 5m cable, allowing flexible positioning away from the monitoring unit.
- Wall-mount form factor keeps the antenna fixed and orientated correctly for optimal reception.
- Lightweight at 0.25 kg, making installation straightforward on most surfaces.
- Compatible with Victron monitoring products that support an external LTE-M antenna connection.
Product Overview
LTE-M is a low-power wide-area network standard used by Victron Energy for remote monitoring connectivity. In locations with marginal cellular coverage, an internal antenna may not maintain a reliable connection. This outdoor antenna mounts on an exterior wall and connects to the monitoring device via the included 5m cable, placing the antenna where signal conditions are better rather than relying on reception inside a building or enclosure.
The 5m cable length is sufficient for most installations to route from an indoor equipment room or enclosure to an external wall without requiring additional cable extensions. The antenna is rated for outdoor use, so it can remain permanently installed without the need for seasonal removal or weatherproofing.
Specifications
- SKU: ANT100200100
- GTIN: 8719076057406
- Cable length: 5 metres
- Weight: 0.25 kg
- Antenna type: LTE-M, wall-mount, outdoor-rated
- Mount style: Wall-mount
Applications
- Off-grid solar installations in rural areas with marginal LTE-M signal coverage.
- Remote battery storage systems using Victron cellular monitoring where internal antenna reception is insufficient.
- Industrial or agricultural sites where monitoring equipment is housed in metal enclosures that attenuate internal antenna signals.
- Marine or static installations requiring a permanently mounted external antenna for reliable remote monitoring.
- Any Victron installation where the monitoring device is located inside a building or enclosure with poor cellular reception.
What Is Included
- 1x Outdoor LTE-M wall-mount antenna
- 1x 5m antenna cable
Installation Notes
Verify that your Victron monitoring device has an external antenna port before purchasing. The antenna should be mounted on an exterior wall with clear line of sight in the direction of the nearest cell tower where possible. Route the cable to avoid sharp bends that could damage the coaxial core. Ensure any wall penetrations for the cable are sealed against moisture ingress. Installation of the connected monitoring equipment should be carried out by a qualified installer familiar with Victron systems.
