Description
xPCBA for Shunt BMV 602S / 700 / 702 / 712

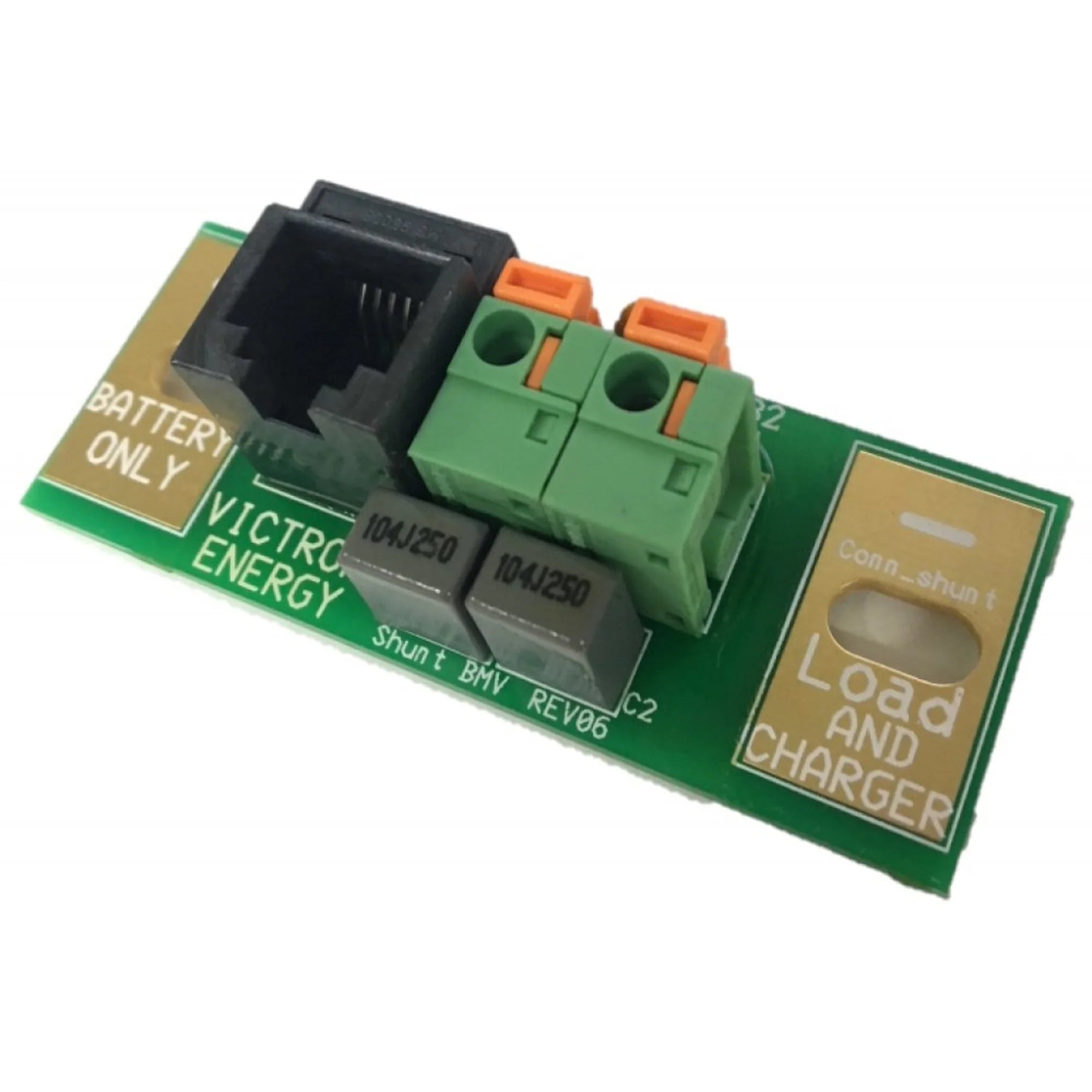

This is the replacement printed circuit board assembly (PCBA) for the shunt unit used in Victron Energy BMV 602S, BMV 700, BMV 702 and BMV 712 battery monitors. It is a direct OEM spare part, intended for repair or replacement of a faulty shunt PCB in an existing installation.
Key Features
- Direct replacement PCBA for the shunt unit across four Victron BMV battery monitor models: 602S, 700, 702 and 712.
- OEM Victron Energy component, ensuring compatibility with the original shunt housing and wiring harness.
- Lightweight at 0.012 kg, making it straightforward to handle during bench repair or on-site replacement.
- SKU SPR00053, GTIN 8719076031710, for accurate ordering and stock verification.
- Allows repair of a faulty shunt unit without replacing the entire battery monitor assembly.
Product Overview
The PCBA (Printed Circuit Board Assembly) is the active electronic component housed within the BMV shunt unit. It handles the signal processing between the shunt resistor and the main BMV display or SmartShunt head unit. When a shunt unit fails due to electrical damage, moisture ingress or component failure, replacing the PCBA is often the most cost-effective repair path rather than sourcing a complete new monitor.
This part is compatible with the BMV 602S, 700, 702 and 712 models. These monitors share a common shunt housing design, and this PCBA is the correct replacement board for all four variants. It is an OEM Victron part, so it matches the original specification without any modification to the shunt body or cabling.
Specifications
- SKU: SPR00053
- GTIN: 8719076031710
- Weight: 0.012 kg
- Compatible models: BMV 602S, BMV 700, BMV 702, BMV 712
- Component type: Printed Circuit Board Assembly (PCBA)
Applications
- Repair of a damaged or failed shunt unit in a BMV 602S, 700, 702 or 712 battery monitor installation.
- Replacement following electrical fault, overvoltage event or moisture damage to the shunt PCB.
- Spare parts stock for solar installers and service engineers maintaining Victron battery monitor installations.
- Workshop repair of returned or faulty BMV shunt units.
What Is Included
- 1 x PCBA for BMV 602S / 700 / 702 / 712 shunt unit
Installation Notes
This component is intended for installation by qualified technicians familiar with Victron BMV battery monitor hardware. Work on battery monitor shunt units involves connections to live battery circuits. Ensure the battery is safely isolated before beginning any repair. If you are unsure whether this is the correct part for your specific unit, verify the model number on your existing BMV display or shunt housing before ordering.
