xVictron Peak Power Pack 12.8V / 20Ah 256Wh Lithium Battery

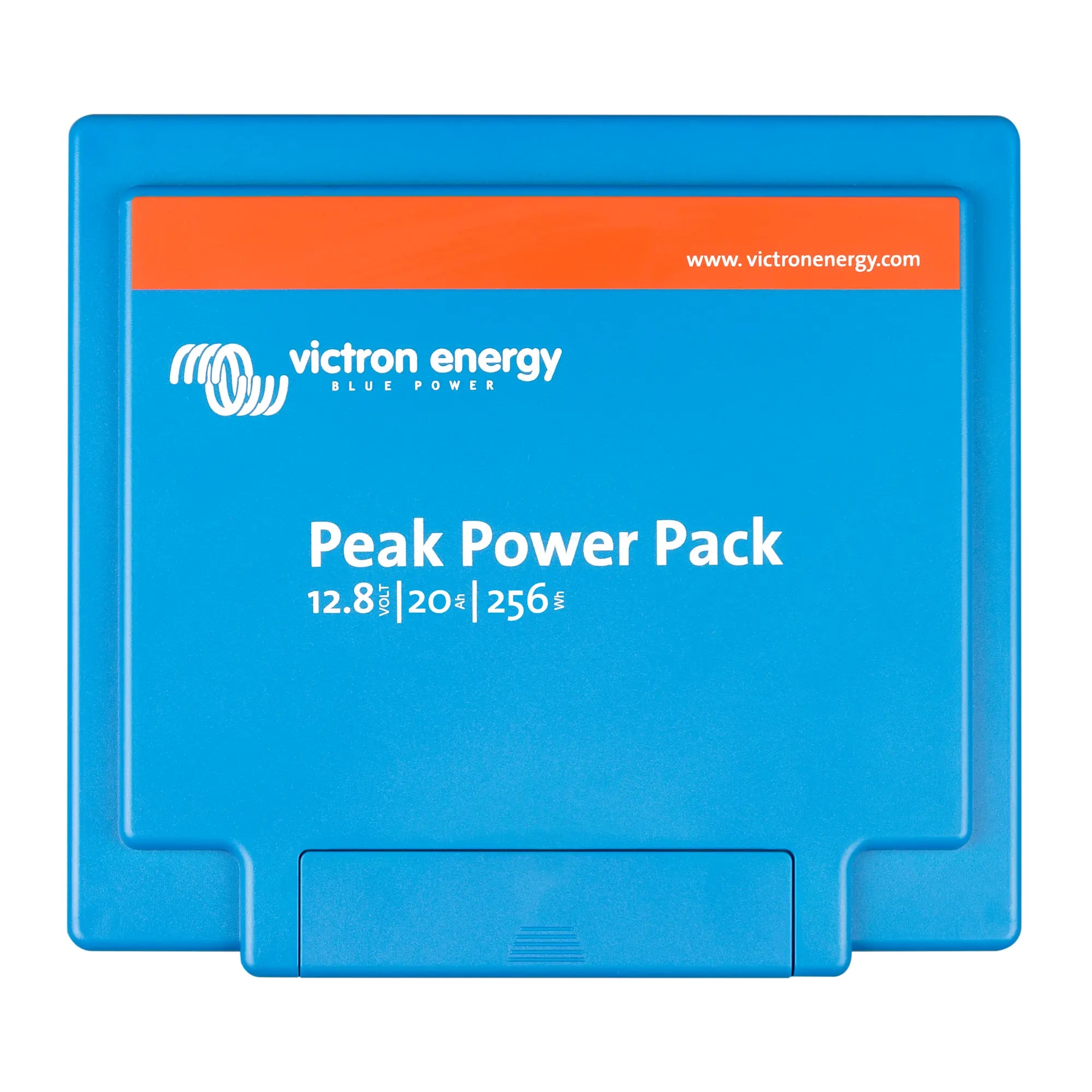

The Victron Peak Power Pack is a self-contained 12.8V lithium iron phosphate (LiFePO4) battery unit rated at 20Ah and 256Wh. It is designed for portable power applications, small off-grid setups and auxiliary power where a compact, ready-to-use energy store is needed without additional battery management hardware.
Key Features
- 12.8V nominal voltage with 20Ah capacity, delivering 256Wh of usable energy from a LiFePO4 cell chemistry.
- Built-in battery management system (BMS) handles cell balancing, over-charge, over-discharge and short-circuit protection.
- Compact and lightweight at 3.96kg, making it practical for portable and mobile installations.
- LiFePO4 chemistry offers a stable discharge curve, low self-discharge and a significantly longer cycle life than lead-acid equivalents.
- Ready to use out of the box with no external BMS or additional management hardware required.
- Compatible with Victron chargers and charge controllers configured for lithium battery profiles.
Product Overview
The Peak Power Pack uses lithium iron phosphate cells, which operate at a nominal 12.8V rather than the 13.2V of some other lithium chemistries. This makes it a closer drop-in match for 12V lead-acid system voltages, though charge parameters must still be set correctly for lithium. The integrated BMS removes the need for a separate protection board, keeping the installation simple and the footprint small.
At 256Wh, this unit suits applications where moderate energy storage is needed in a portable or space-constrained format. The LiFePO4 chemistry is thermally stable and tolerates deep discharge better than lead-acid, which means the full rated capacity is genuinely usable in practice. Cycle life is substantially higher than sealed lead-acid, reducing replacement frequency over the life of an installation.
Specifications
- SKU: PPP012020000
- Nominal voltage: 12.8V
- Capacity: 20Ah
- Energy: 256Wh
- Cell chemistry: Lithium Iron Phosphate (LiFePO4)
- Weight: 3.96kg
- GTIN: 8719076017318
Applications
- Portable power stations and field equipment power supplies.
- Auxiliary battery for campervans, caravans and narrowboats.
- Small off-grid lighting or monitoring systems.
- Backup power for low-draw 12V devices and instrumentation.
- Marine auxiliary power where weight and space are limited.
What Is Included
- 1x Victron Peak Power Pack 12.8V / 20Ah (256Wh)
Installation Notes
The Peak Power Pack includes an integrated BMS, so no external battery management hardware is required. Ensure any charger or solar charge controller is set to a lithium (LiFePO4) charge profile before connecting. Do not use charge parameters intended for lead-acid batteries. For installations forming part of a larger electrical system on a vessel or vehicle, connection should be carried out by a qualified electrician familiar with lithium battery systems.
