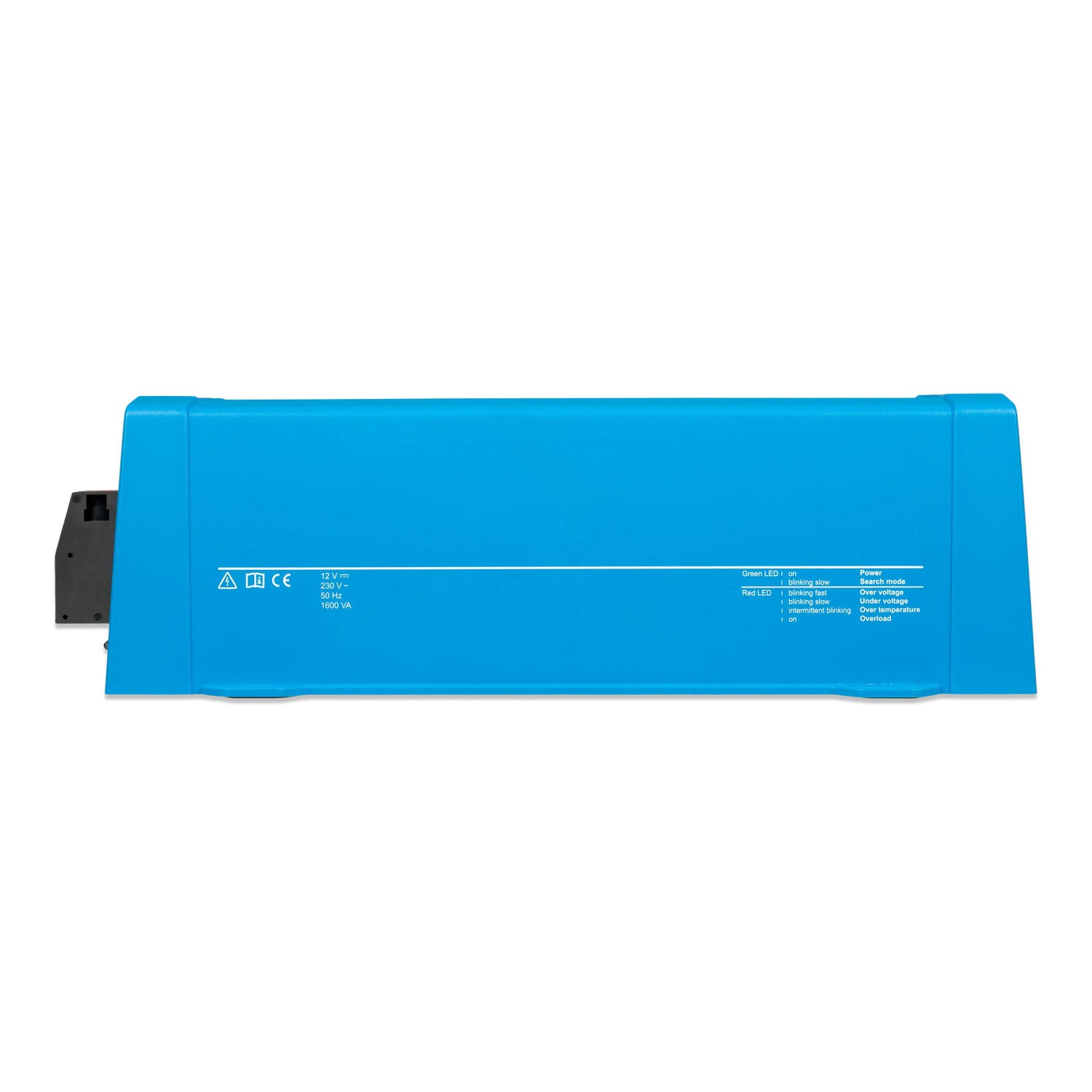

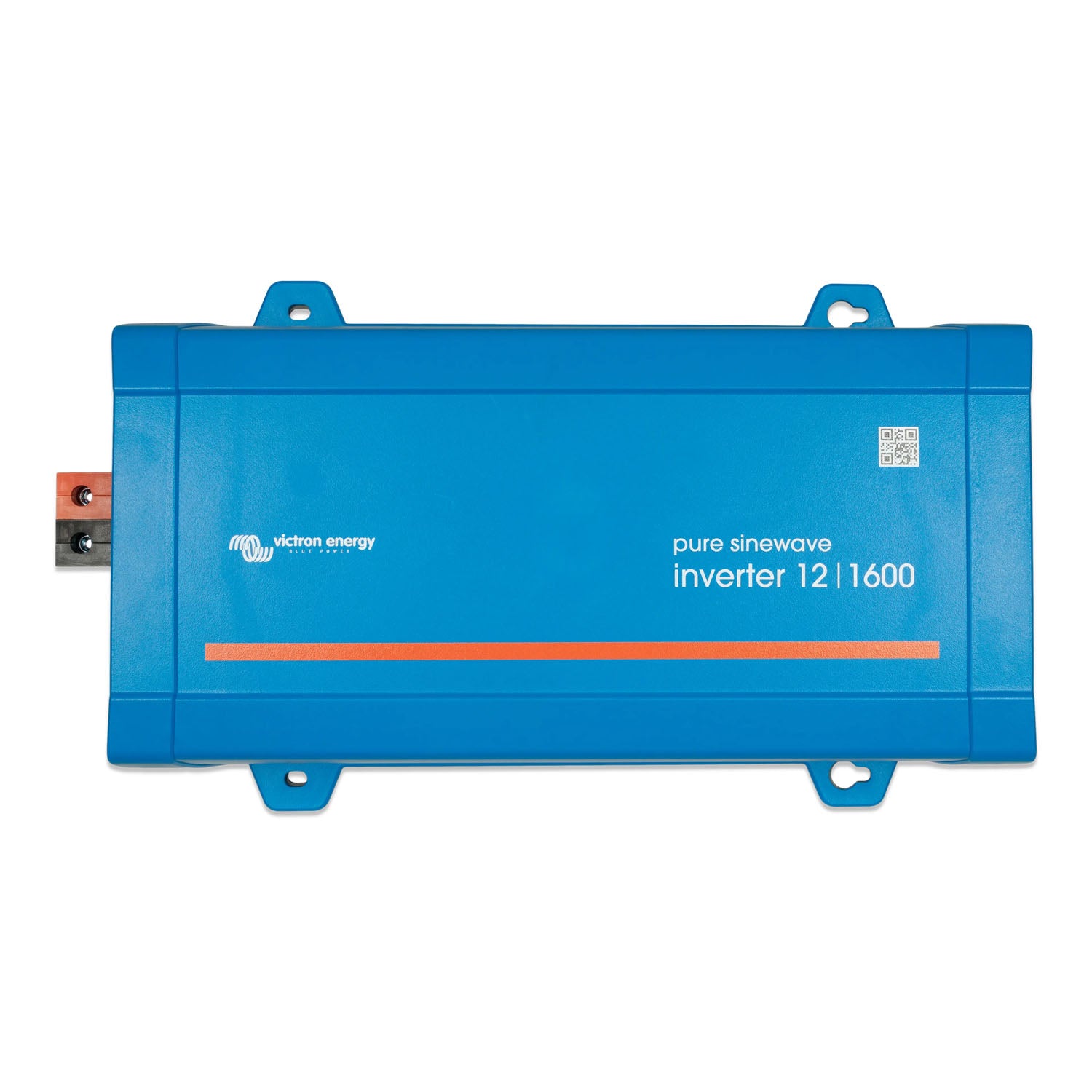

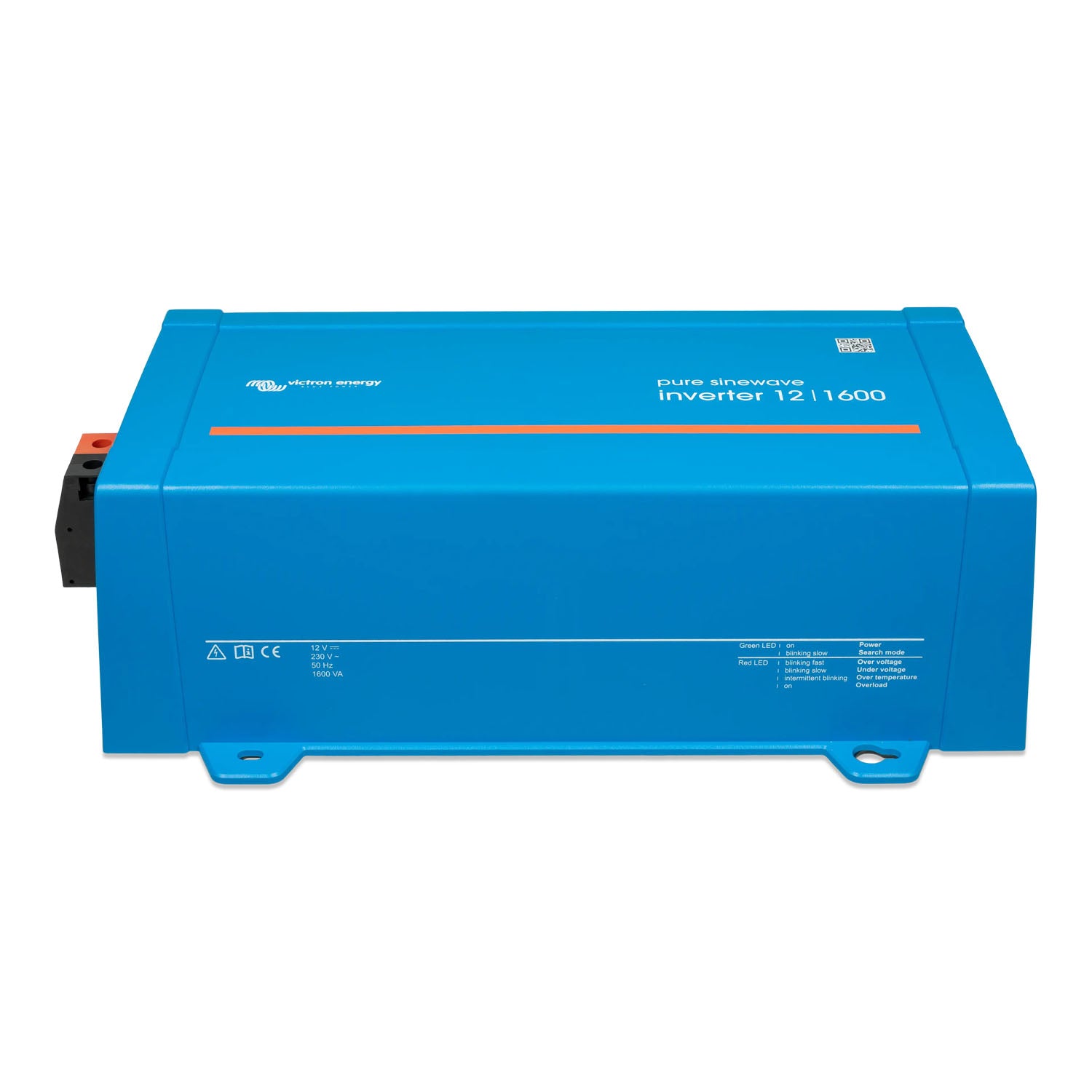

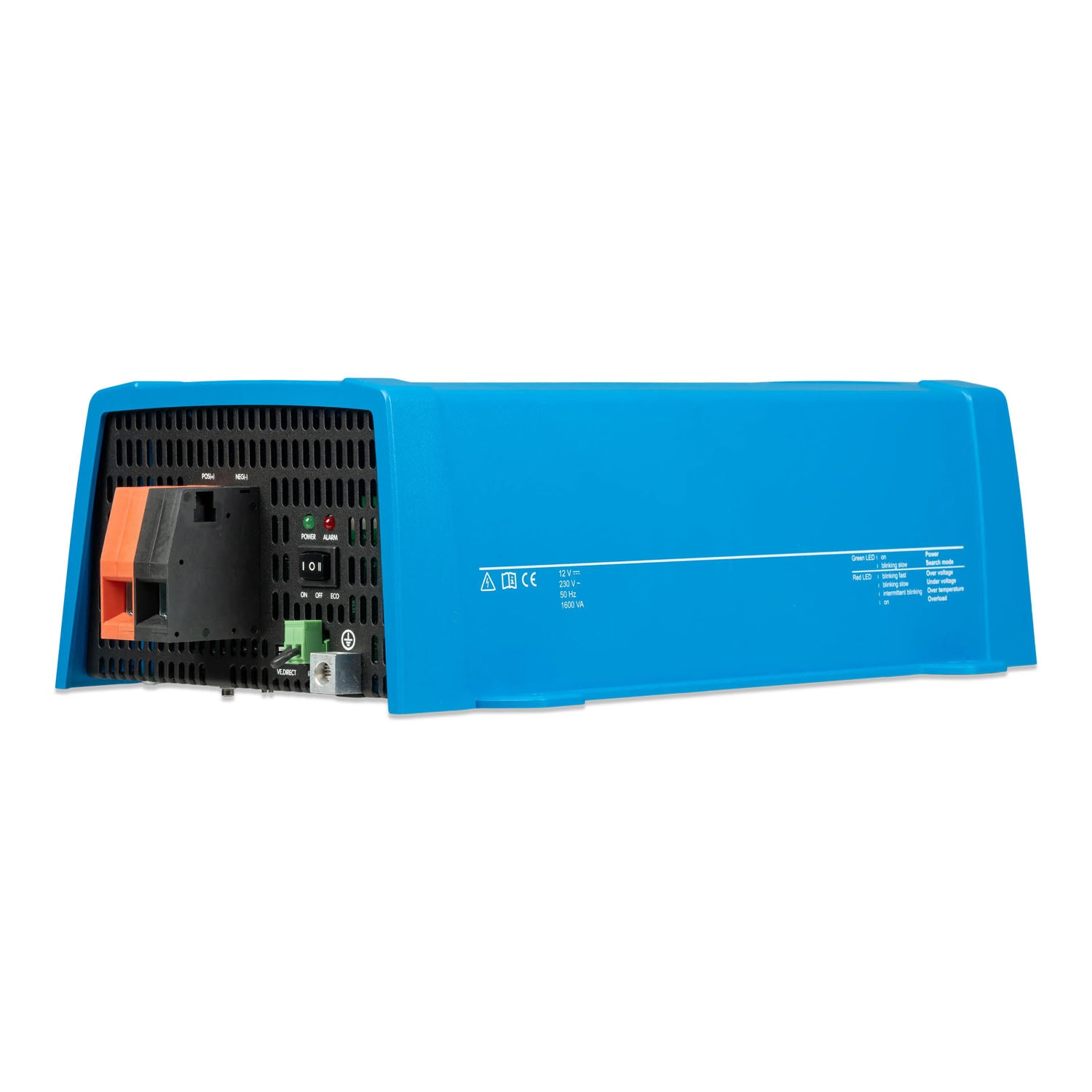

xVictron Phoenix Inverter 12/1600 230V VE.Direct - PIN122161400
The Victron Phoenix Inverter 12/1600 is a robust and reliable inverter that delivers 230V AC from a 12V battery source. With increased output power compared to the 1200 model, it is well suited for running more demanding household and professional equipment. Built on Victron’s proven design, it ensures safe and efficient power conversion with long-term durability.
Inverter Features
Proven Reliability
The inverter uses a full bridge with toroidal transformer topology that has been trusted for many years. It is short circuit proof and protected against overheating, whether from overload or high ambient temperature.
High Start-Up Power
Designed to power loads with high inrush currents such as LED drivers, halogen and filament lamps, or electric tools.
AC Output Socket Options
This inverter is available with different AC output sockets: Schuko, UK, AU/NZ or IEC-320 (supplied with male plug).
ECO Mode
ECO mode reduces power consumption by up to 85% by switching to standby when loads are low. It checks periodically for increased load demand and resumes full operation when required. Sensitivity settings are fully configurable.
Fully Configurable
- AC output voltage and frequency
- Low battery voltage cut-off and restart levels
- ECO mode on/off and ECO mode sensitivity
Automatic Transfer Switch
Pair with the Filax2 Automatic Transfer Switch for seamless transfer to another AC source. With less than 20 milliseconds switchover, sensitive electronics such as computers continue to run without disruption. Alternatively, use an inverter/charger with a built-in transfer switch.
ON/OFF/ECO Switch
- ON – Turns the inverter on
- OFF – Switches the inverter off
- ECO – Activates ECO mode
LED Diagnosis & Monitoring
LED indicators provide essential status and warning information:
- Inverter operational state
- Overload alarms
- Over temperature alarms
- Low battery voltage warnings
- High DC ripple warnings
Additional monitoring available via VictronConnect:
- Battery voltage
- AC output voltage
- Percentage of nominal AC load
- Warnings and alarms
The VictronConnect App
Configure and monitor your inverter with the VictronConnect app for Android, iOS, Windows, and macOS. Connect via USB (VE.Direct cable) or optional Bluetooth dongle.
Bluetooth
No built-in Bluetooth is included. Use the optional VE.Direct Bluetooth Smart dongle for wireless communication with the VictronConnect app.
VE.Direct Port
The VE.Direct port offers multiple connection possibilities:
- VictronConnect app via USB interface
- VictronConnect app via Bluetooth Smart dongle
- GX monitoring devices such as Cerbo GX (VE.Direct cable required)
- GlobalLink 520 (VE.Direct cable required)
Remote On/Off Control
Remotely control the inverter using:
- The VictronConnect app
- An optional external switch
- The optional Inverter Control VE.Direct panel
- A BMS (Battery Management System)
- GX devices and the VRM portal
