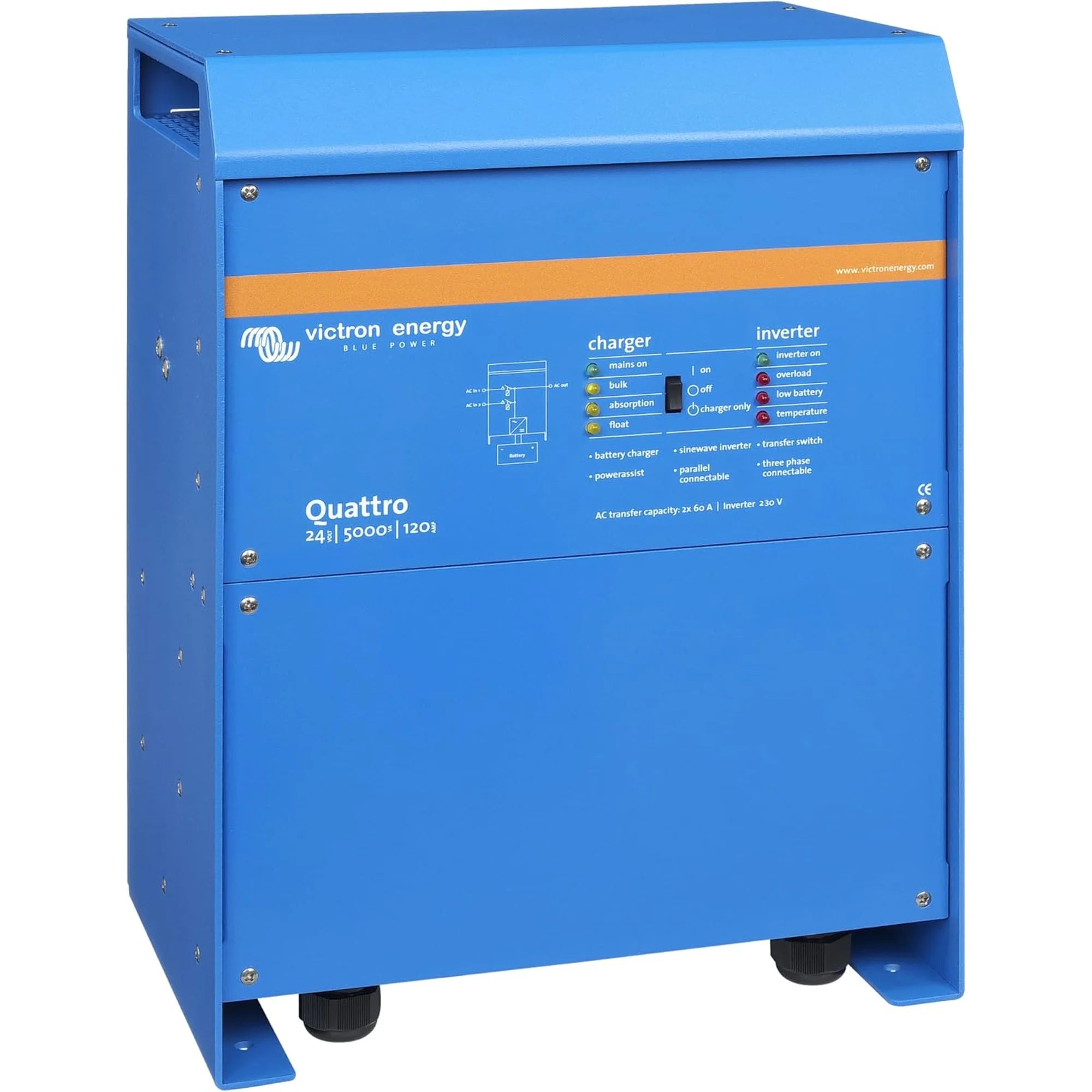

xVictron Quattro 24/5000/120-100/100 230V VE.Bus Inverter Charger
The Victron Quattro 24/5000/120-100/100 is a combined inverter and charger designed for demanding off-grid, backup and marine or vehicle applications. It accepts two independent AC inputs, allowing automatic switching between shore power, a generator and inverter output. At 5000VA continuous output from a 24V battery bank, it suits professional installations where reliable power management across multiple sources is required.
Key Features
- 5000VA continuous AC output from a 24V DC battery system
- 120A battery charger built in, with adaptive charge algorithm for accurate multi-stage charging
- Two independent AC inputs (100A each) for connecting shore power and a generator simultaneously
- Automatic transfer switching between AC input 1, AC input 2 and inverter with no break in output
- VE.Bus communication interface for system integration, remote monitoring and parallel or three-phase configuration
- PowerControl and PowerAssist functions to limit generator or shore power draw and supplement with battery power when demand peaks
- Compatible with Victron GX devices and VEConfigure for full system programming
Product Overview
The Quattro series differs from the Multiplus range by providing two separate AC inputs rather than one. This matters in practice when a site has both a generator and a shore power connection: the Quattro monitors both, selects the available source automatically and switches without interrupting the AC output. The 120A charger is sized to make effective use of a generator run, charging a large 24V battery bank quickly before the generator is switched off.
PowerAssist allows the unit to draw from the battery to supplement an AC input that is current-limited. If a generator or shore supply is rated at, say, 6kW and the load briefly exceeds that, the Quattro draws the difference from the battery rather than tripping the supply. This is particularly useful on boats, motorhomes and remote sites where the available AC source has a hard current limit.
VE.Bus connectivity means multiple Quattro units can be configured in parallel for higher current output, or in split or three-phase arrangements. A single GX device (Cerbo GX, Color Control GX or similar) can monitor and control the whole system. Configuration is carried out using VEConfigure software over a VE.Bus to USB interface.
Technical Specifications
| Parameter | Value |
| SKU | QUA245021010 |
| DC Input Voltage (Nominal) | 24V |
| Continuous AC Output Power | 5000VA |
| Built-in Battery Charger | 120A |
| AC Input 1 Current Rating | 100A |
| AC Input 2 Current Rating | 100A |
| AC Output Voltage | 230V |
| Communication Interface | VE.Bus |
| Weight | 31.5 kg |
| GTIN | 8719076024156 |
Applications
- Off-grid cabins, lodges and remote buildings requiring dual AC source management
- Marine vessels with both shore power and generator connections
- Motorhomes, coaches and large vehicles with 24V battery systems
- Critical backup power systems where automatic source switching is required
- Parallel or three-phase commercial off-grid installations using multiple Quattro units via VE.Bus
- Hybrid generator and battery systems where PowerAssist reduces generator sizing requirements
What Is Included
- Victron Quattro 24/5000/120-100/100 230V inverter charger unit
Installation Notes
The Quattro 24/5000/120-100/100 must be installed by a qualified electrician. At 31.5 kg, two-person handling is advisable during mounting. DC cabling to the battery bank must be correctly rated and fused for the high charge and discharge currents involved. For any grid-connected or generator-connected installation in the UK, ensure compliance with current wiring regulations and, where applicable, G98 or G99 requirements. VEConfigure software and a VE.Bus to USB interface cable are required for commissioning and parameter adjustment. Battery chemistry settings must be correctly configured before first use.
