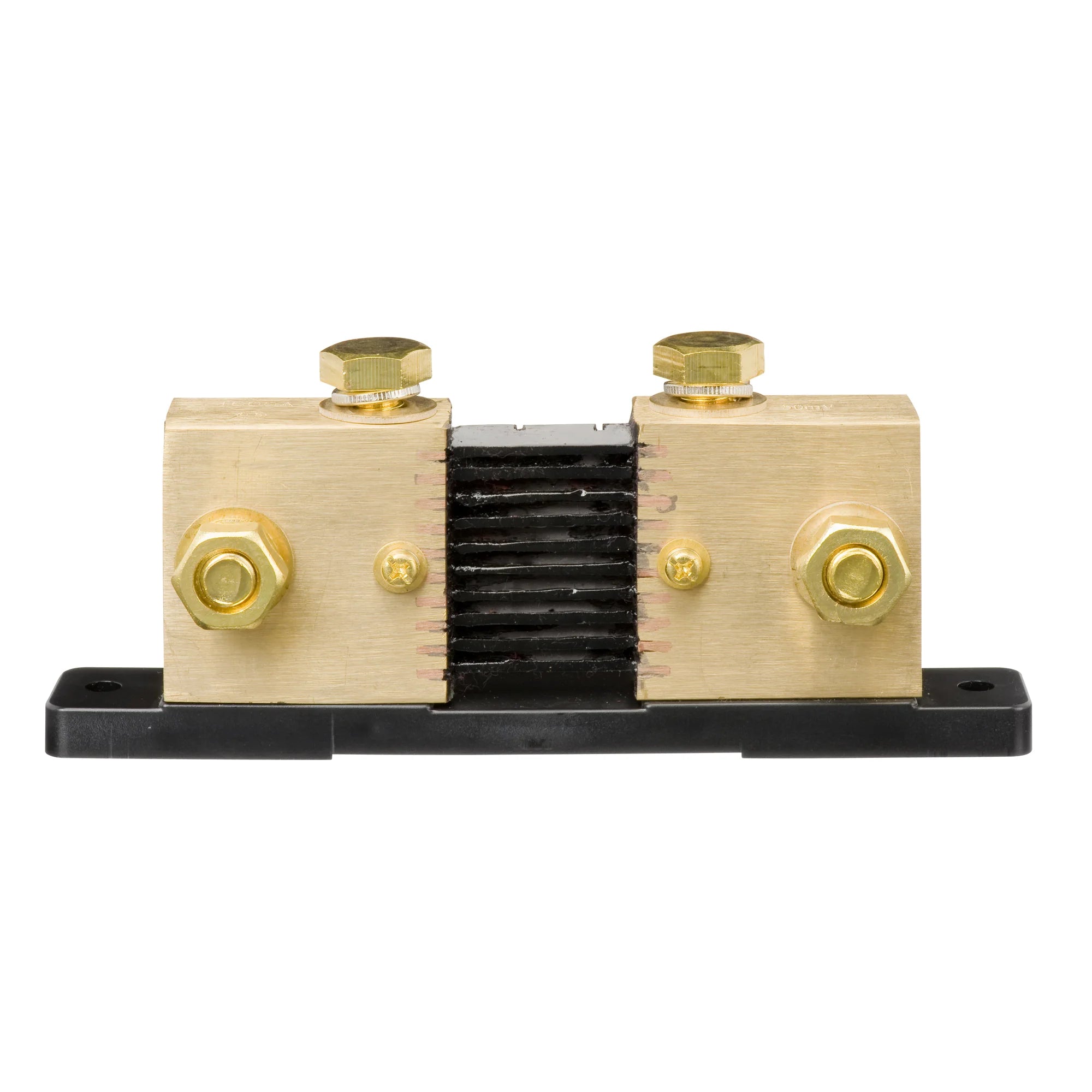

xVictron Energy Shunt 1000A/50mV with 2xM10 Terminals
The Victron Energy 1000A/50mV shunt is a precision current measurement component used in battery monitoring systems. It is designed for use with Victron BMV battery monitors and compatible energy meters, and suits high-current DC applications in off-grid, marine, and commercial installations.
Key Features
- Rated at 1000A continuous with a 50mV full-scale voltage drop, providing accurate current measurement across a wide load range.
- Dual M10 bolt terminals for secure, low-resistance connections to heavy-gauge DC cabling.
- Compact, solid-construction design suitable for installation in battery enclosures, distribution boards, and switchgear panels.
- Compatible with Victron BMV-700, BMV-712, and other Victron battery monitoring equipment that accepts a 50mV shunt input.
- Calibrated to 0.5% accuracy class, ensuring reliable state-of-charge and current data in monitoring applications.
Product Overview
A shunt works by inserting a known, very low resistance into the main DC current path. The voltage drop across this resistance is proportional to the current flowing through it. At 1000A, this shunt produces exactly 50mV, which the connected battery monitor reads and converts into an accurate current figure. The 50mV standard is widely used across Victron's monitoring range, making this shunt a direct replacement or upgrade component in existing systems.
The M10 terminal bolts are sized for the heavy-gauge cable typically used in high-current battery banks, inverter connections, and DC distribution systems. Proper torque on the terminal connections is important: under-tightened connections at this current rating will cause localised heating and measurement error. The shunt should be installed in the negative conductor between the battery negative terminal and all other loads and charge sources, as is standard practice for single-shunt battery monitoring.
Specifications
- SKU: SHU102050200
- Rated current: 1000A continuous
- Voltage drop at rated current: 50mV
- Accuracy class: 0.5%
- Terminal type: 2x M10 bolts
- Weight: 1 kg
- GTIN: 8719076026198
Applications
- Battery current monitoring in off-grid solar systems with high-capacity battery banks.
- Marine DC systems where accurate state-of-charge monitoring is required.
- Motorhome and vehicle conversion builds with large lithium or AGM battery installations.
- Commercial and industrial UPS or backup power systems using Victron BMV monitors.
- Replacement shunt in existing Victron monitoring installations requiring a higher current rating.
What Is Included
- 1x Victron Energy 1000A/50mV shunt with 2x M10 terminals
Installation Notes
This shunt carries the full DC current of the battery system and must be installed correctly to avoid measurement errors and potential hazards. It should be fitted in the negative main conductor, with all negative returns connected to the load side of the shunt. Only the battery negative connects to the battery side. Connections must be torqued to the appropriate specification for M10 terminals. Installation in high-current DC systems should be carried out by a qualified electrician or experienced solar installer familiar with DC battery systems.
