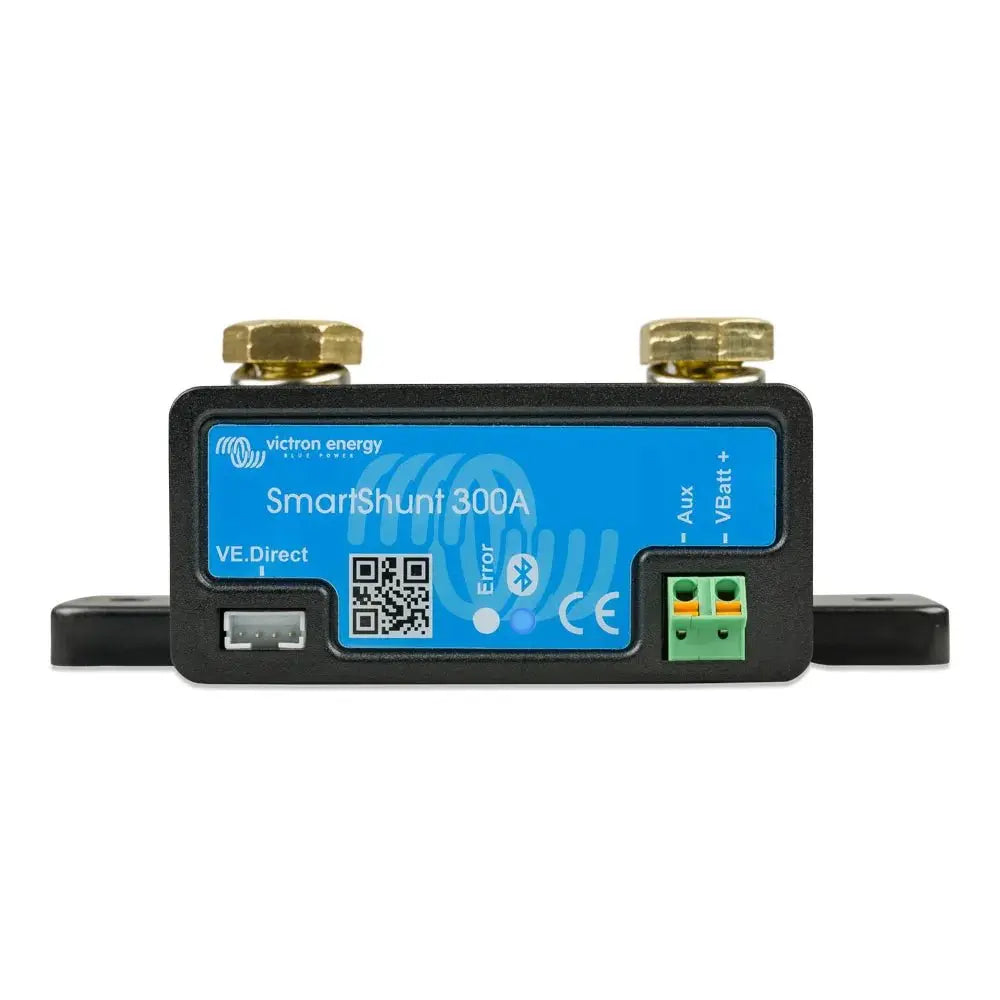

xVictron SmartShunt 300A - The Ultimate Battery Monitoring Solution - SHU050130050
Introducing the Victron SmartShunt 300A, an advanced all-in-one battery monitor that simplifies how you interact with your power systems. With no physical display, your smartphone or tablet transforms into a sophisticated monitoring interface using the free VictronConnect app.
Effortless Connectivity
Connect seamlessly via Bluetooth to the VictronConnect app and unlock detailed insights into your battery’s performance. Monitor parameters like state of charge, time to go, and access historical data with ease. For an enhanced setup, integrate the SmartShunt with a GX device via a VE.Direct cable, allowing local or remote monitoring through the VRM portal.
Smart Features
- Dual Connection: Bluetooth for wireless data or VE.Direct for a stable wired connection.
- Auxiliary Input: Monitor a second battery, check midpoint voltages or connect a temperature sensor for comprehensive battery management.
- Historical Data Tracking: Keep tabs on deepest discharges, average discharge and charge cycle counts to better understand your battery life.
Benefits of Monitoring
Battery monitoring is essential in maximizing battery lifespan and efficiency. The Victron SmartShunt helps prevent common battery issues such as under-charging, over-charging, and excessive temperature fluctuations. With the SmartShunt, proactive measures can be easily implemented, ensuring your battery investment is protected and optimized for long-term performance.
Product Comparison
While the SmartShunt offers extensive features similar to the BMV-712 Battery Monitor, it is designed for setups requiring minimal wiring and installation space without the need for programmable alarms or relays.
Get Connected
Ready to upgrade your battery monitoring system? The Victron SmartShunt 300A is your gateway to smarter energy management. Purchase now and experience the peace of mind that comes with comprehensive battery monitoring!
Specifications
x| SmartShunt | |
|---|---|
| Supply voltage range | 6.5 - 70 VDC |
| Current draw | < 1mA |
| Input voltage range, auxiliary battery | 6.5 - 70 VDC |
| Battery capacity (Ah) | 1 - 9999 Ah |
| Operating temperature range | -40 +50°C (-40 - 120°F) |
| Measures voltage of second battery, or temperature, or midpoint | Yes |
| Temperature measurement range | -20 +50°C |
| VE.Direct communication port | Yes |
| Resolution & Accuracy | |
| Current | ±0.01 A |
| Voltage | ±0.01 V |
| Amp hours | ±0.1 Ah |
| State of charge (0 - 100 %) | ±0.1 % |
| Time to go | ±1 min |
| Temperature (if optional temperature sensor connected) | ±1 °C/°F |
| Accuracy of current measurement | ±0.4 % |
| Offset | Less than 10 mA |
| Accuracy of voltage measurement | ±0.3 % |
| Installation & Dimensions | |
| Dimensions (h x w x d) | 44 x 120 x 44 mm |
| Shunt connection bolts | M8 |
| Protection category | IP21 |
| Standards | |
| Safety | EN 60335-1 |
| Emission / Immunity | EN-IEC 61000-6-1 EN-IEC 61000-6-2 |
| Automotive | EN 50498 |
| Accessories | |
| Cables (included) | Two cables with 1 A fuse, for '+' connection and starter battery or midpoint connection |
| Temperature sensor | Optional (ASS000100000) |
| A note regarding the range of the Bluetooth signal | The shunt and the electric cables do negatively influence the range of the Bluetooth signal. The resulting range of 10-15 meter is however satisfactory in most cases. The proximity of other electrically conducting elements, such as the metal chassis of a vehicle or seawater around the hull if a boat, may reduce the range of the Bluetooth signal to an unacceptable level. The solution in such a case is to add a VE.Direct Bluetooth Dongle (ASS030536011) to the system, and to switch off Bluetooth in the SmartShunt. |
| Stored Trends | |
| Data stored | Battery voltage, Current, State of Charge % as well as the Aux input (Battery temperature, or midpoint deviation, or starter battery voltage) |
| Number of days trends data is stored | 46 |
