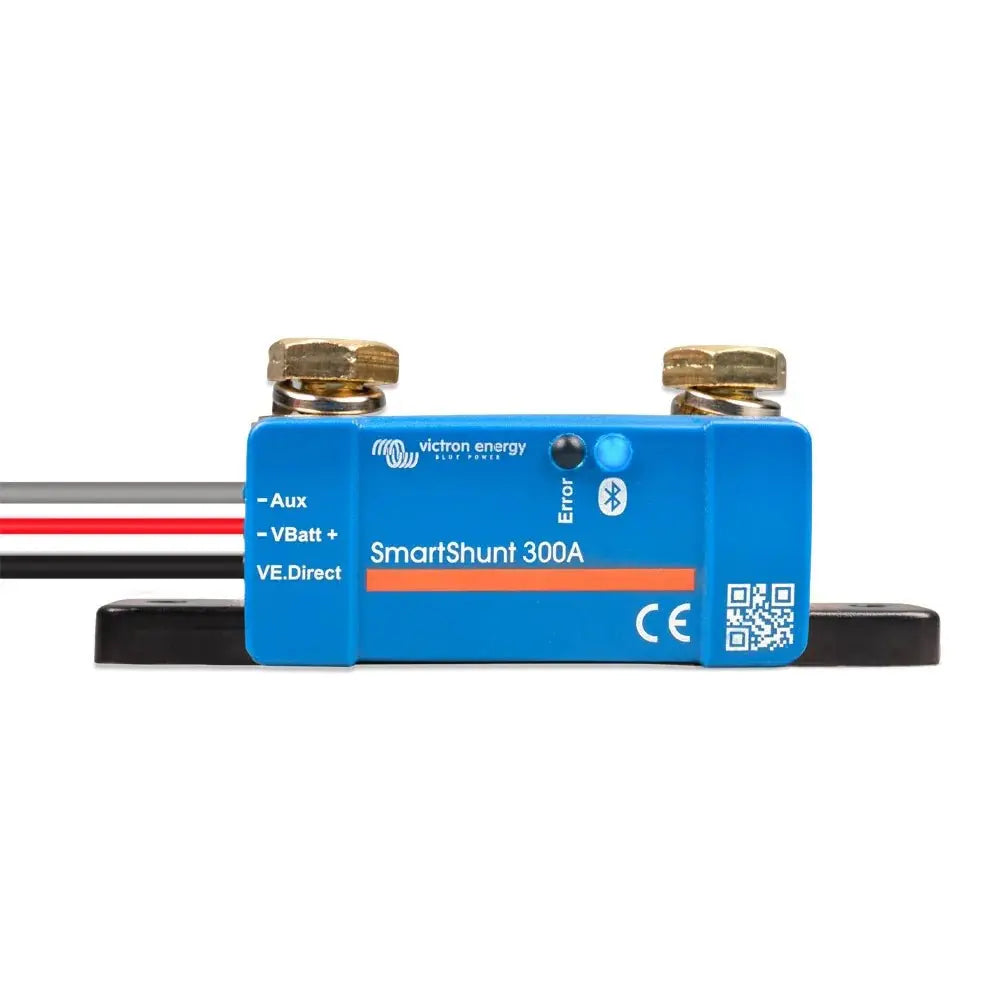

xVictron SmartShunt 300A IP65
The Victron SmartShunt 300A IP65 is a battery monitor designed for use in environments where moisture and dust ingress are a concern. It measures current, voltage, state of charge, consumed amp-hours, and time-to-go, transmitting all data wirelessly via Bluetooth to the VictronConnect app. No display is required on the unit itself, making it a compact and cost-effective alternative to a full battery monitor with a dedicated screen.
Key Features
- IP65-rated enclosure provides protection against dust ingress and low-pressure water jets, suitable for exposed or damp installations.
- 300A continuous current rating covers the majority of 12V, 24V and 48V battery systems used in off-grid, marine and vehicle applications.
- Bluetooth connectivity built in, with no additional dongle required. Pairs directly with the free VictronConnect app on iOS and Android.
- Monitors state of charge, voltage, current, consumed amp-hours, instantaneous power, and time-to-go from a single device.
- Supports a wide range of battery chemistries including lead-acid (AGM, gel, flooded) and lithium (LiFePO4).
- Integrates with the Victron GX ecosystem, allowing data to be logged and viewed via Venus OS devices and the VRM portal.
- Compact and lightweight at 0.31 kg, with no separate shunt box required as the shunt is built into the unit.
Product Overview
The SmartShunt replaces the traditional combination of a standalone shunt and a wired battery monitor display. All monitoring functions are handled internally, with data accessed through Bluetooth rather than a physical screen. This reduces wiring complexity and allows the unit to be mounted close to the battery bank, even in locations where a display would be impractical to read.
The IP65 rating distinguishes this variant from the standard SmartShunt. It is suited to installations where the monitor may be exposed to condensation, spray or dusty conditions, such as engine bays, bilges, outdoor enclosures or agricultural vehicles. The sealed enclosure does not compromise the Bluetooth range or the accuracy of the current measurement.
Integration with Victron's GX devices (Cerbo GX, Venus GX, and others) is achieved via Bluetooth, allowing the SmartShunt to feed data into a full system overview on the VRM portal. This makes it a practical choice for monitored off-grid systems where remote visibility of battery state is required.
Specifications
- SKU: SHU065130050
- Current rating: 300A continuous
- IP rating: IP65
- Connectivity: Bluetooth (VictronConnect)
- Weight: 0.31 kg
- GTIN: 8719076065791
Applications
- Off-grid solar battery banks where remote state-of-charge monitoring is needed without a wired display.
- Marine installations, including bilge or engine bay mounting where moisture exposure is likely.
- Campervans, motorhomes and HGV auxiliary battery systems.
- Agricultural and construction vehicles with auxiliary power systems.
- Outdoor or partially exposed battery enclosures in telecoms or remote power applications.
What Is Included
- 1x Victron SmartShunt 300A IP65 unit
Installation Notes
The SmartShunt must be installed in the negative line between the battery bank and all loads and charge sources, with only the battery negative connected directly to the shunt. Incorrect wiring will produce inaccurate readings. Installation should be carried out by a qualified electrician or experienced system integrator familiar with DC battery systems. For off-grid solar systems, an MCS-accredited installer is recommended. Ensure the correct fusing is in place on the positive cable as per the battery manufacturer's recommendations.
Specifications
x| SmartShunt IP65 | 300 A | |
|---|---|---|
| Supply voltage range | 6.5 - 70 VDC | |
| Current draw | < 1 mA | |
| Input voltage range, auxiliary battery | 6.5 - 70 VDC | |
| Battery capacity (Ah) | 1 - 9999 Ah | |
| Operating temperature range | -40 to +50°C (-40 to 120°F) | |
| Measures voltage of second battery, or temperature, or midpoint | Yes | |
| Temperature measurement range | -20 to +50°C | |
| VE.Direct communication port | Yes | |
| Resolution & Accuracy | ||
| Current | ± 0.01 A | |
| Voltage | ± 0.01 V | |
| Amp hours | ± 0.1 Ah | |
| State of charge (0 – 100 %) | ± 0.1 % | |
| Time to go | ± 1 min | |
| Temperature (if optional temperature sensor connected) | ± 1°C/°F (0 – 50°C or 30 – 120°F) | |
| Accuracy of current measurement | ± 0.4 % | |
| Offset | Less than 10 mA | |
| Accuracy of voltage measurement | ± 0.3 % | |
| Installation & Dimensions | ||
| Dimensions (h x w x d) | 44 x 120 x 38 mm | |
| Shunt connection bolts | M8 | |
| Protection category | IP65 | |
| Standards | ||
| Safety | EN 60335-1 | |
| Emission / Immunity | EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 | |
| Automotive | EN 50498 | |
| Cables | ||
| Cables | Two 1.5 m cables with 1 A fuse, for ‘+’ connection and starter battery or midpoint connection | |
| VE.Direct cable | 1.5 m cable with VE.Direct socket. VE.Direct cable is needed to connect a GX device (not included) | |
| Stored Trends | ||
| Data stored | Battery voltage, Current, State of Charge %, Aux input (Battery temperature, or midpoint deviation, or starter battery voltage) | |
| Number of days trend data is stored | 46 | |
