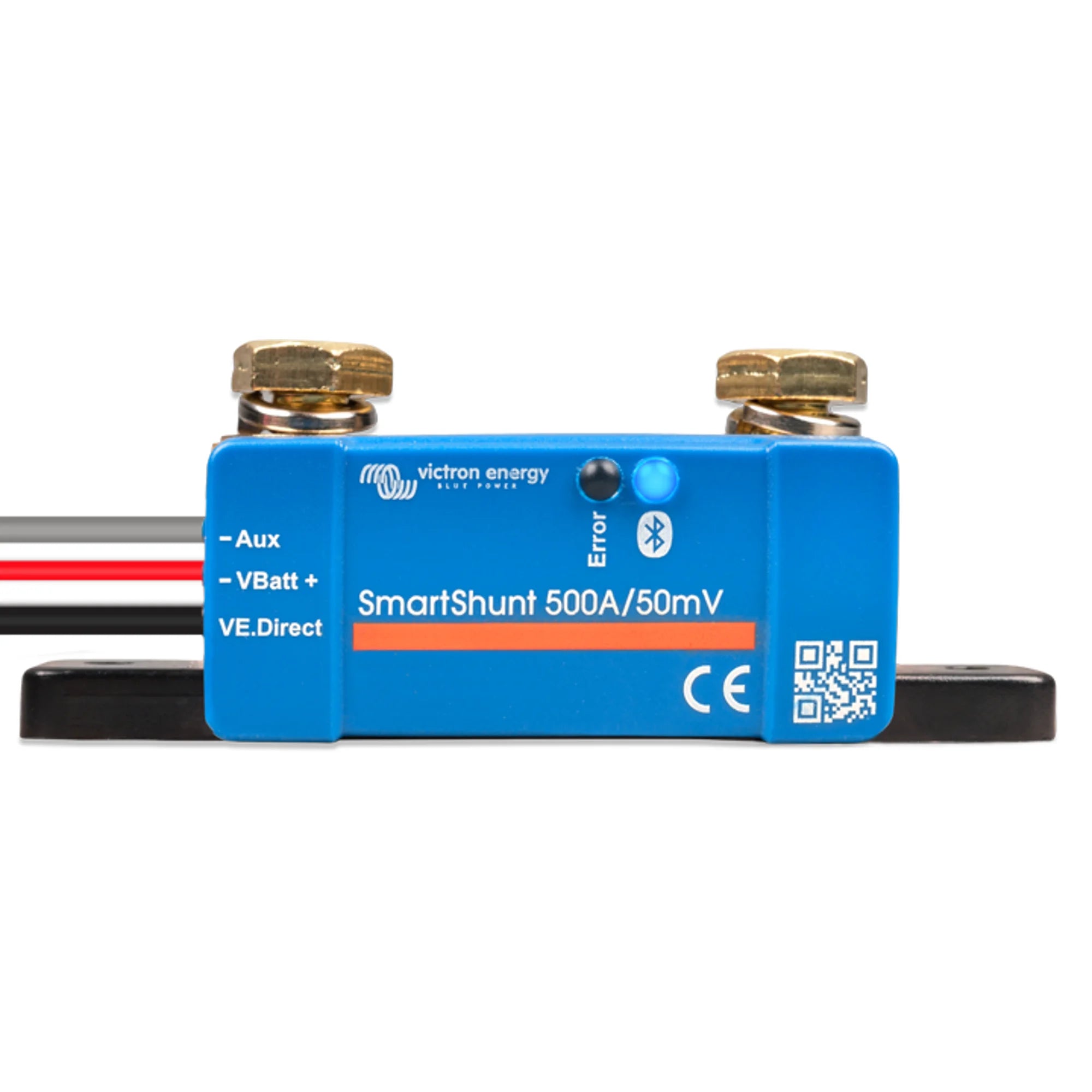

xVictron Energy SmartShunt 500A Battery Monitor
The Victron SmartShunt 500A is a standalone battery monitor that tracks state of charge, consumed amp-hours, voltage, current and power without requiring a separate display unit. It connects directly to the VictronConnect app via Bluetooth, making it well suited to installations where a dedicated display is unnecessary or impractical. Designed for 12V, 24V and 48V battery systems, it is a practical choice for off-grid, marine and vehicle applications.
Key Features
- Monitors state of charge, consumed amp-hours, voltage, current and power in real time.
- Built-in Bluetooth connects to the VictronConnect app on iOS and Android without additional hardware.
- 500A continuous current rating with a 50mV shunt for accurate measurement across a wide load range.
- Compatible with 12V, 24V and 48V battery systems, including lithium, AGM, gel and flooded lead-acid chemistries.
- Compact, display-free design integrates cleanly into battery enclosures, panels or tight installations.
- Supports VE.Direct output for integration with Victron GX devices, MPPT controllers and other compatible equipment.
- Configurable battery parameters including capacity, Peukert exponent, charge efficiency factor and tail current.
- Tracks historical data including deepest discharge, number of cycles and time since last full charge.
Product Overview
The SmartShunt replaces the traditional shunt-plus-display combination by embedding all monitoring intelligence directly into the shunt body. All readings are accessed through VictronConnect, which provides a clear dashboard view of battery status, historical data and configuration options. This removes the need to route display cables or find panel space for a BMV head unit, which is a meaningful advantage in compact or retrofit installations.
The 500A rating covers the majority of off-grid, leisure and light commercial battery installations. The 50mV shunt drop is consistent with Victron's BMV series, meaning accuracy is maintained across both high-current discharge events and low-level standby loads. Accurate state-of-charge tracking depends on correct configuration of battery capacity and chemistry parameters, all of which are set through VictronConnect. The VE.Direct port allows the SmartShunt to feed data into a Victron Cerbo GX or Venus GX, making it a straightforward addition to a larger Victron system.
For installations that do require a local display, the SmartShunt is compatible with the optional Victron GX Touch or a connected GX device screen. It is not compatible with the BMV-700 or BMV-712 display heads. The unit is powered from the battery being monitored and draws minimal standby current.
Specifications
- SKU: SHU050150150
- Current rating: 500A continuous
- Shunt voltage drop: 50mV at 500A
- Connectivity: Bluetooth (VictronConnect), VE.Direct
- Compatible battery voltages: 12V, 24V, 48V
- Weight: 0.324 kg
- GTIN: 8719076075165
Applications
- Off-grid solar battery systems requiring state-of-charge monitoring without a panel-mounted display.
- Marine and narrowboat installations where space for a display head is limited.
- Motorhome, campervan and van conversion leisure battery banks.
- Victron system builds using a GX device for centralised monitoring via VRM or local display.
- Retrofit battery monitoring on existing installations where running display cables is not practical.
- Light commercial or industrial battery systems up to 500A continuous discharge.
What Is Included
- Victron SmartShunt 500A unit
- Connection cable for battery negative and sense wiring
- Documentation and quick-start guide
Installation Notes
The SmartShunt must be installed in the negative battery line, between the battery negative terminal and all other negative connections in the system. All negative loads and charge sources must return through the shunt for accurate readings. Incorrect wiring will produce inaccurate state-of-charge data. Installation should be carried out by a qualified electrician or experienced installer familiar with battery system wiring. For systems integrated into solar PV installations, a qualified or MCS-accredited installer is recommended. Ensure the shunt is rated appropriately for the maximum continuous current of the battery bank before installation.
