Description

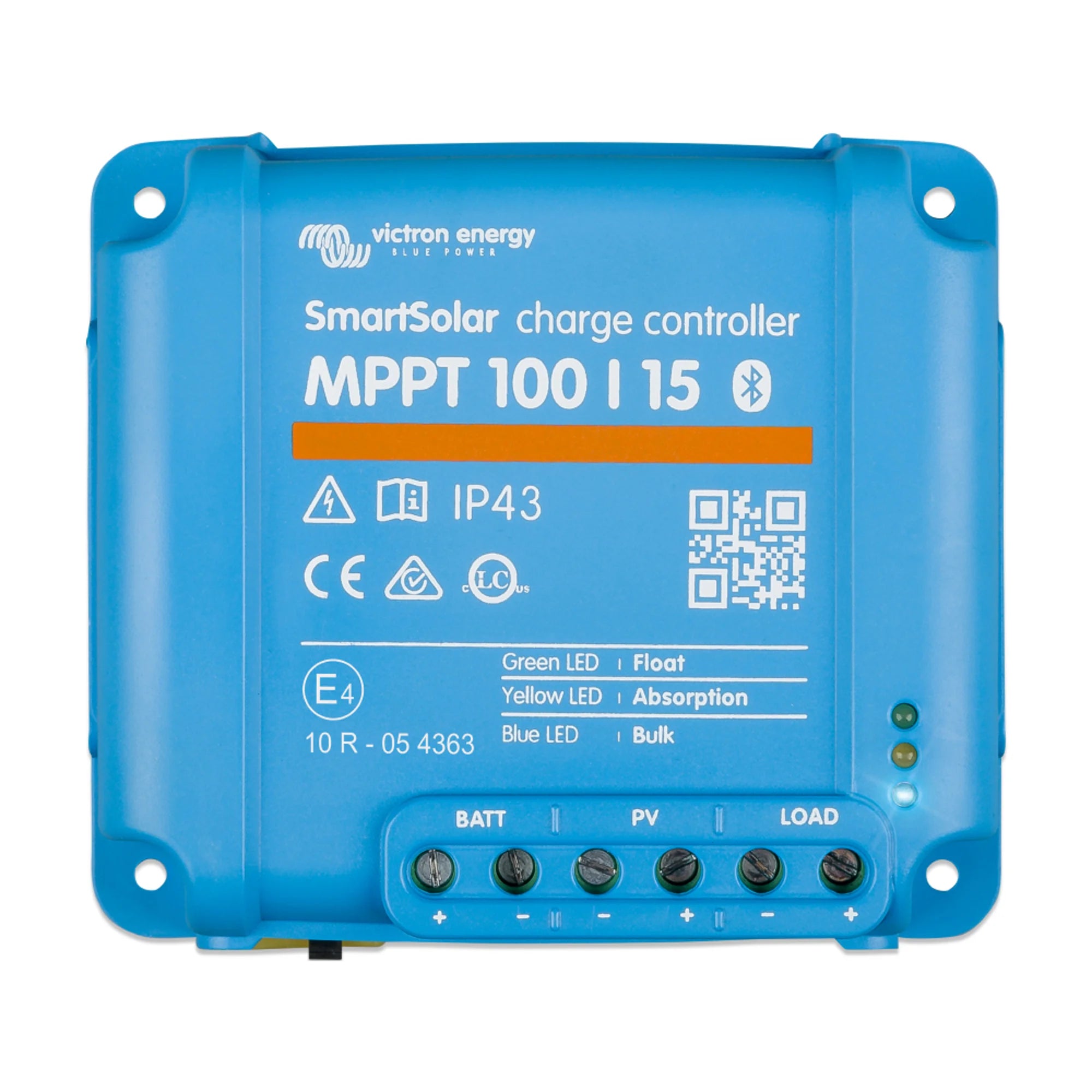

xVictron SmartSolar MPPT 100/15 Charge Controller
The Victron SmartSolar MPPT 100/15 is a solar charge controller designed for small to medium off-grid systems. It accepts a maximum PV open-circuit voltage of 100V and delivers up to 15A charge current, making it well suited to 12V and 24V battery systems. Built-in Bluetooth allows direct configuration and monitoring from a smartphone without additional hardware.
Key Features
- Maximum PV open-circuit voltage of 100V with a 15A maximum charge current output.
- Compatible with 12V and 24V battery systems, with automatic voltage detection.
- Built-in Bluetooth for wireless monitoring and configuration via the VictronConnect app on iOS and Android.
- Multi-stage adaptive charging algorithm supports flooded, gel, AGM and lithium battery chemistries.
- Integrated load output with programmable street lighting and timer functions.
- Ultra-fast maximum power point tracking improves energy harvest compared to PWM controllers, particularly under variable irradiance conditions.
- Optional VE.Direct communication port for connection to a GX device, MPPT Control display or data logging.
Product Overview
MPPT (Maximum Power Point Tracking) controllers extract more usable energy from a solar array than PWM alternatives by continuously adjusting the operating point of the panels to match their peak power output. The 100/15 is rated for a 100V maximum PV input voltage, which gives installers flexibility when configuring panel strings, particularly in cooler climates where open-circuit voltage rises. The 15A charge current supports battery banks up to approximately 200Ah in a typical installation.
The built-in Bluetooth removes the need for a separate dongle. Using the VictronConnect app, an installer can set battery type and charge voltages, configure the load output, view live data and check historical yield logs directly from a phone or tablet. For more complex systems, the VE.Direct port allows integration with Victron GX devices such as the Cerbo GX, enabling full system monitoring via the VRM online portal.
The load output provides a switched 15A output that can power DC loads directly, with programmable control modes including dusk-to-dawn, timer-based switching and battery voltage protection. This makes the unit practical for lighting, signage and remote monitoring installations where a separate load controller would otherwise be required.
Technical Specifications
| Parameter | Value |
| SKU | SCC110015060R |
| Maximum PV Open-Circuit Voltage | 100V |
| Maximum Charge Current | 15A |
| Compatible Battery Voltages | 12V / 24V (auto-detect) |
| Communication | Built-in Bluetooth, VE.Direct port |
| Load Output | 15A programmable DC load output |
| Weight | 0.55 kg |
| GTIN | 8719076040811 |
Applications
- Off-grid cabins, garden buildings and outbuildings with 12V or 24V battery systems.
- Campervans, motorhomes and narrowboats requiring compact solar charge management.
- Remote monitoring stations, telecoms enclosures and security installations.
- Solar-powered lighting systems using the integrated programmable load output.
- Small agricultural or rural installations where grid power is unavailable.
What Is Included
- Victron SmartSolar MPPT 100/15 charge controller (retail packaging)
Installation Notes
Installation should be carried out by a competent electrician or qualified solar installer. Ensure the PV array open-circuit voltage does not exceed 100V under any temperature condition, including cold-weather Voc rises. Select cable sizes and fusing in accordance with the charge current rating and applicable wiring regulations. For lithium battery installations, verify that the battery BMS is compatible with the charge profile settings available in VictronConnect. The load output is not suitable for AC loads or inductive loads without appropriate protection.
