Description

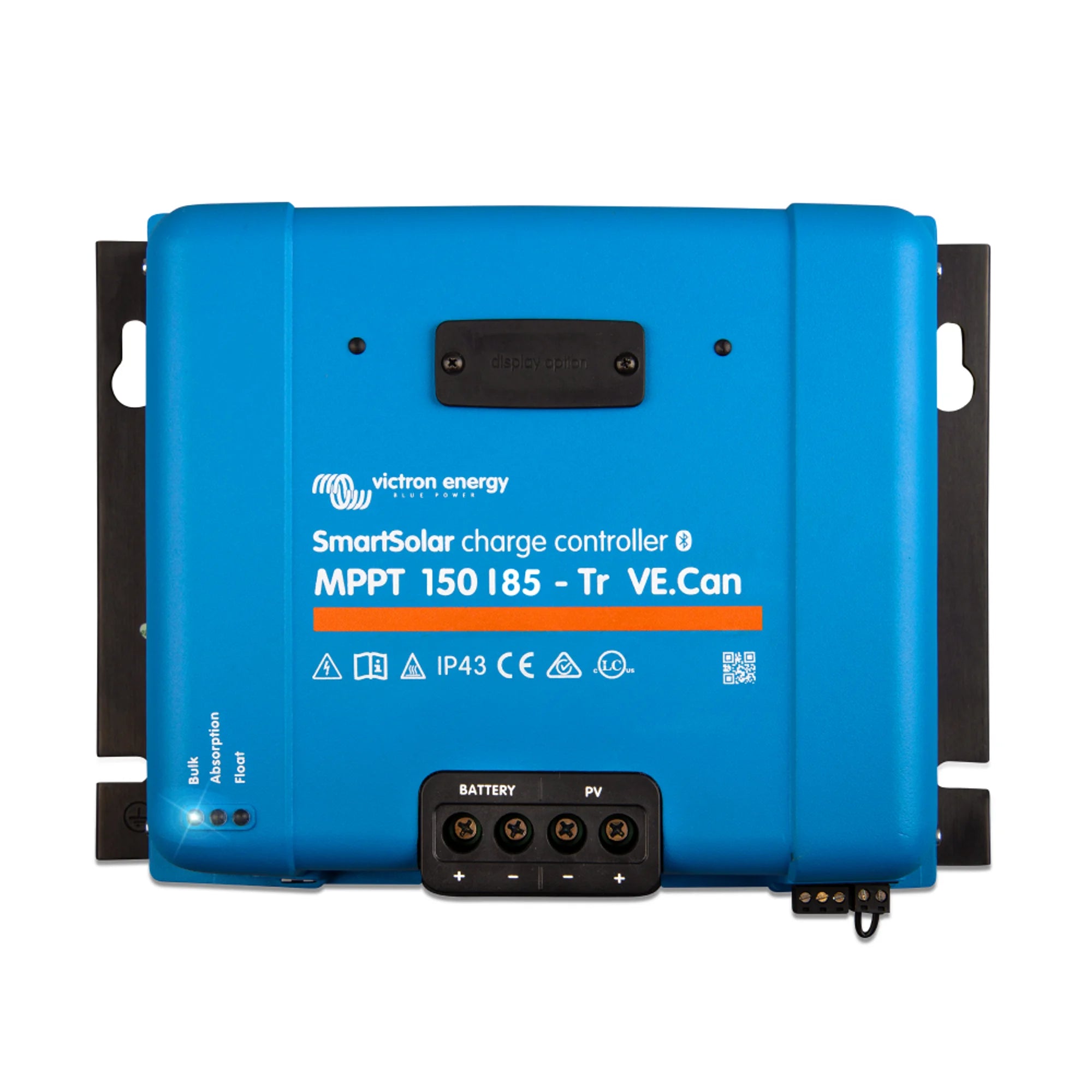

xVictron SmartSolar MPPT 150/85-Tr VE.Can Solar Charge Controller
The Victron SmartSolar MPPT 150/85-Tr VE.Can is a high-current solar charge controller designed for professional off-grid, marine and large residential installations. It accepts a maximum PV open-circuit voltage of 150V and delivers up to 85A of charge current, with built-in Bluetooth and VE.Can network connectivity for integration into larger Victron systems.
Key Features
- Maximum PV open-circuit voltage of 150V with an 85A maximum charge current output.
- Built-in Bluetooth via the VictronConnect app for wireless monitoring and configuration without additional hardware.
- VE.Can port enables integration with the Victron GX device ecosystem, including Cerbo GX and Venus GX, for full system monitoring and data logging.
- Tr (screw terminal) connection type for secure, high-current wiring in permanent installations.
- Advanced MPPT algorithm with rapid maximum power point tracking, suitable for variable irradiance conditions.
- Supports multiple battery chemistries including lithium (LiFePO4), AGM, gel and flooded lead-acid, with user-configurable charge profiles.
- Load output functionality allows direct connection of DC loads with programmable control based on battery state of charge.
- Integrated battery voltage sense and optional remote temperature sensor input for accurate charge compensation.
Product Overview
The 150/85-Tr sits in the mid-to-upper range of the SmartSolar MPPT series. The 150V maximum PV voltage allows the use of longer PV strings with higher-voltage panels, reducing cable losses and giving installers more flexibility in array design. At 85A output, it can handle substantial PV arrays on 12V, 24V or 48V battery banks, with the highest charge power available on a 48V system.
The VE.Can interface is the key differentiator over standard SmartSolar models. It allows the controller to communicate directly with Victron GX devices over a CAN bus network, enabling full remote monitoring, firmware updates over the network, and coordinated control in multi-device installations. This makes it well suited to systems where a Cerbo GX or similar device is already present, or where the installer needs centralised oversight of multiple charge sources.
The Tr (screw terminal) variant is intended for fixed installations where cable management and terminal security are priorities. The controller's MPPT algorithm continuously tracks the optimal power point of the PV array, which is particularly relevant in partial shading conditions or when panel temperature causes the MPP to shift during the day.
Technical Specifications
| Parameter | Value |
| SKU | SCC115085411 |
| Maximum PV Open-Circuit Voltage | 150V |
| Maximum Charge Current | 85A |
| Compatible Battery Voltages | 12V, 24V, 48V |
| Connection Type | Tr (screw terminals) |
| Connectivity | Bluetooth (built-in), VE.Can |
| Weight | 4.5 kg |
| GTIN | 8719076050339 |
Applications
- Off-grid cabins, lodges and rural properties with 48V battery systems and larger PV arrays.
- Marine and narrowboat installations requiring network integration with a Victron GX device.
- Mobile and vehicle-based systems (large motorhomes, expedition vehicles) where VE.Can system monitoring is in use.
- Commercial off-grid installations with multiple Victron devices on a shared VE.Can network.
- Hybrid systems combining solar, generator and inverter/charger where centralised GX monitoring is required.
What Is Included
- Victron SmartSolar MPPT 150/85-Tr VE.Can charge controller (1 unit)
Installation Notes
Installation should be carried out by a qualified electrician or MCS-accredited installer familiar with DC solar systems. The PV array must be designed so that the open-circuit voltage does not exceed 150V under any temperature condition, including cold-weather Voc. Ensure correct fusing on both the PV and battery connections in accordance with wiring regulations. For VE.Can network use, the CAN bus must be correctly terminated at both ends of the network. Lithium battery profiles must be configured to match the specific battery management system in use. This unit is not suitable for grid-tied export without additional approved equipment.
