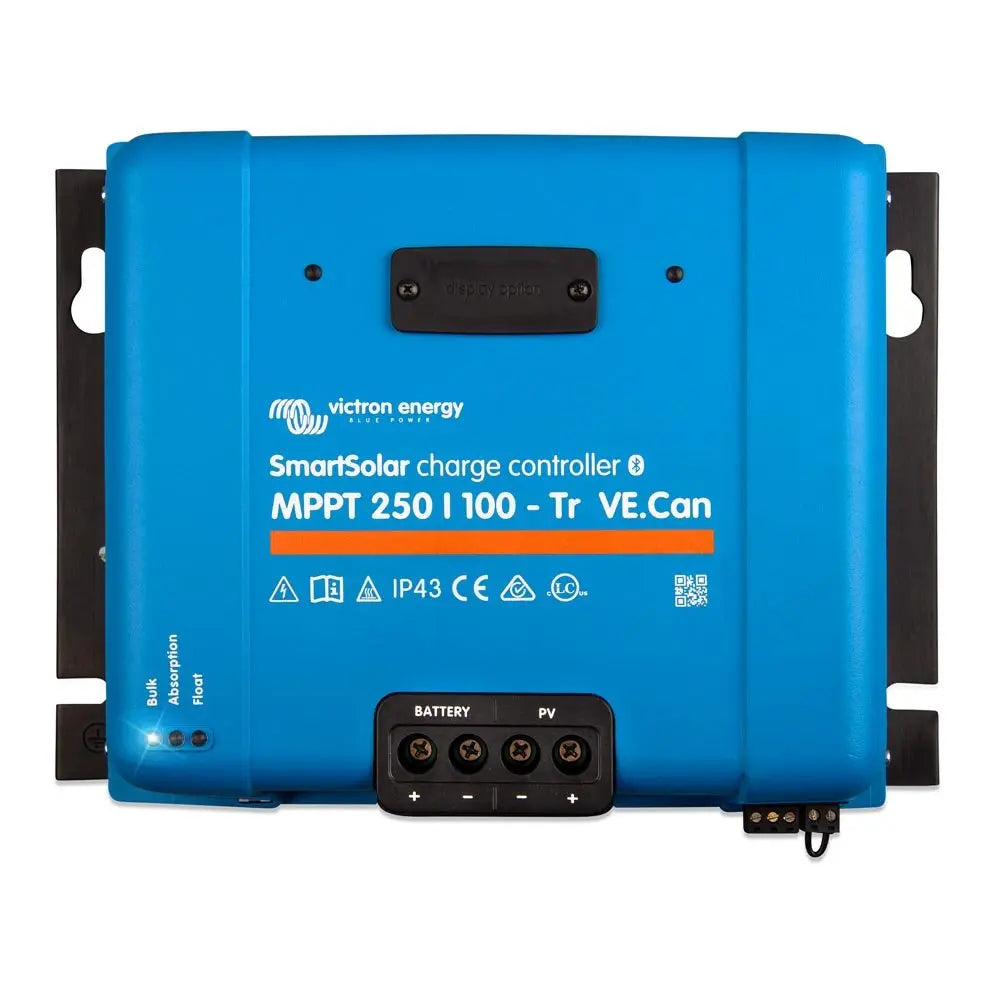

xVictron SmartSolar MPPT 250/100 VE.Can Bluetooth Solar Charge Controller
The Victron SmartSolar MPPT 250/100 VE.Can is a professional-grade solar charge controller engineered for high-performance off-grid, hybrid, and energy storage systems. Using ultra-fast MPPT technology, it continuously tracks the optimal operating point of your solar array to maximise energy harvest throughout the day.
Note: Optional LCD display is not included.
Key Product Features
- Ultra-Fast MPPT Charging: Delivers up to 100A charging current with up to 99% efficiency, maximising solar yield even in variable light conditions.
- Wide Voltage & Battery Compatibility: Supports PV open circuit voltages up to 250V and automatically adapts to 12V, 24V, or 48V battery systems including lithium, AGM, GEL, and lead-acid.
- Smart Bluetooth Monitoring: Built-in Bluetooth enables real-time monitoring and configuration via the VictronConnect app, with access to live and historical performance data.
- VE.Can Networking & Scalability: Daisy-chain multiple SmartSolar VE.Can units for synchronised charging and seamless integration with Victron GX monitoring systems.
Advanced MPPT Performance
With support for PV open circuit voltages up to 250V and a powerful 100A charge output, the SmartSolar MPPT 250/100 efficiently charges large battery banks while minimising losses over long cable runs. All charging parameters are fully programmable to match specific battery manufacturer requirements.
Remote Monitoring & System Control
Built-in Bluetooth allows direct access from a smartphone or tablet using the VictronConnect app. When connected to a GX device, system data can be accessed remotely via the Victron Remote Management (VRM) portal. For installations without local internet, compatibility with GlobalLink 520 enables long-range monitoring.
VE.Can Networking & Expansion
The integrated VE.Can interface allows multiple SmartSolar VE.Can chargers to be connected using a single RJ45 cable. All units synchronise their charge stages, improving system efficiency and simplifying large-scale solar installations.
Smart Control, I/O & Integration

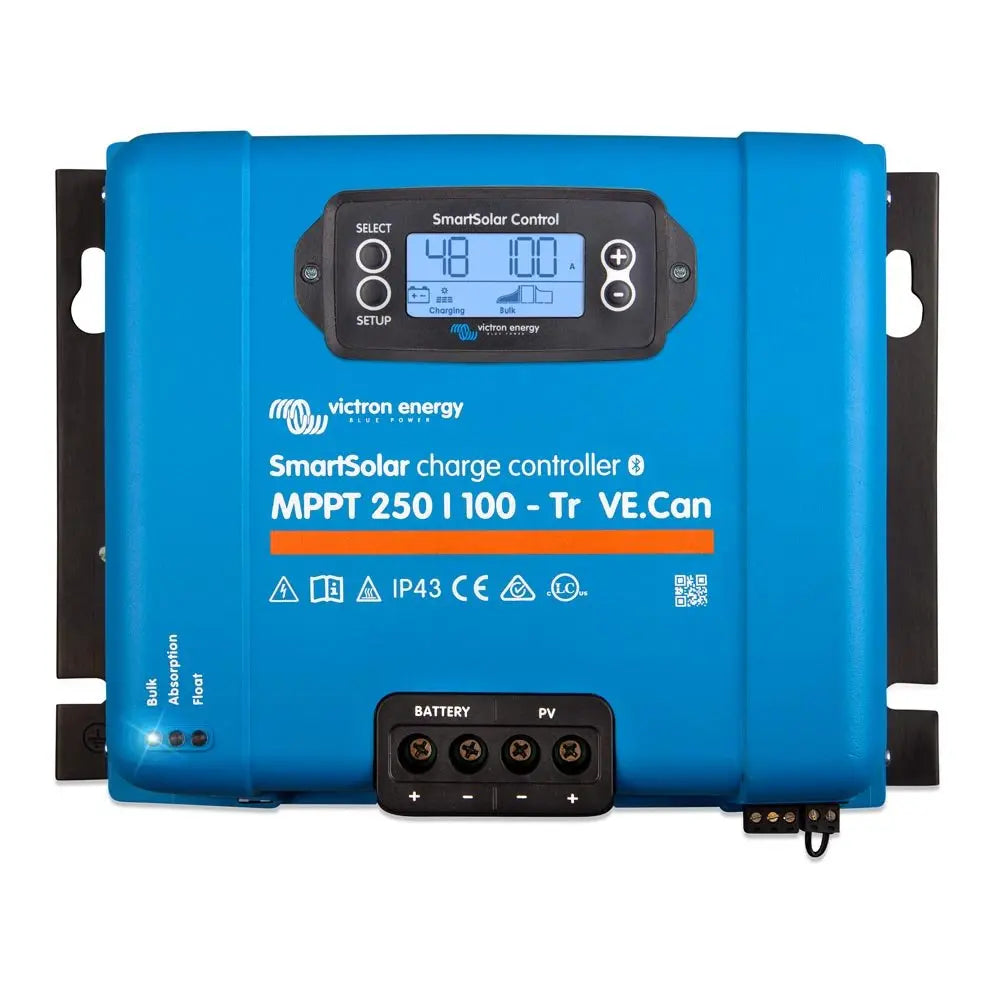

In addition to VE.Can, the controller features a VE.Direct port for monitoring or lighting control, a remote on/off input for third-party control (including lithium BMS systems), and support for an optional plug-in LCD display for local system visibility.
Ideal Applications
- Off-grid and hybrid solar systems
- High-voltage PV arrays with long cable runs
- Professional energy storage installations
- Marine, mobile, and industrial power systems
Specifications
x
| Model | SmartSolar MPPT 250/100-Tr VE.Can |
| Part number | SCC125110512 |
| Battery voltage | 12 / 24 / 48 V auto select (36 V manual) |
| Rated charge current | 100 A |
| Nominal PV power (12 V) | 1450 W |
| Nominal PV power (24 V) | 2900 W |
| Nominal PV power (36 V) | 4350 W |
| Nominal PV power (48 V) | 5800 W |
| Max PV short circuit current | 70 A (max 30 A per MC4 connector) |
| Maximum PV open circuit voltage (absolute max) | 250 V (coldest conditions) |
| PV start-up and operating maximum | 245 V |
| Maximum efficiency | 99 % |
| Self consumption | Less than 35 mA at 12 V / 20 mA at 48 V |
| Charge voltage (absorption) default | 14.4 / 28.8 / 43.2 / 57.6 V (adjustable) |
| Charge voltage (float) default | 13.8 / 27.6 / 41.4 / 55.2 V (adjustable) |
| Charge voltage (equalisation) default | 16.2 / 32.4 / 48.6 / 64.8 V (adjustable) |
| Charge algorithm | Multi-stage adaptive (8 pre-programmed) or user defined |
| Temperature compensation | -16 mV / -32 mV / -64 mV per °C |
| Protection | PV reverse polarity / Output short circuit / Over temperature |
| Operating temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Humidity | 95 %, non-condensing |
| Maximum altitude | 5000 m (full rated output up to 2000 m) |
| Environmental condition | Indoor, unconditioned |
| Pollution degree | PD3 |
| Data communication | VE.Can, VE.Direct and Bluetooth |
| Remote on/off | Yes (2 pole connector) |
| Programmable relay | DPST. AC: 240 VAC / 4 A. DC: 4 A up to 35 VDC, 1 A up to 60 VDC |
| Parallel operation | Yes, synchronised with VE.Can (max 25 units) or Bluetooth (max 10 units) |
| Enclosure colour | Blue (RAL 5012) |
| PV terminals (Tr models) | 35 mm² / AWG2 |
| Battery terminals | 35 mm² / AWG2 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 4.5 kg |
| Dimensions (h x w x d) Tr model | 216 x 295 x 103 mm |
| Safety standards | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| Stored trends | Battery voltage, current, temperature, load output current, PV voltage, PV current |
| Days of trends stored | 46 |
Notes: If more PV power is connected, the controller will limit input power. PV voltage must exceed Vbat + 5 V to start, thereafter minimum PV voltage is Vbat + 1 V. A PV array with a higher short circuit current may damage the controller.
