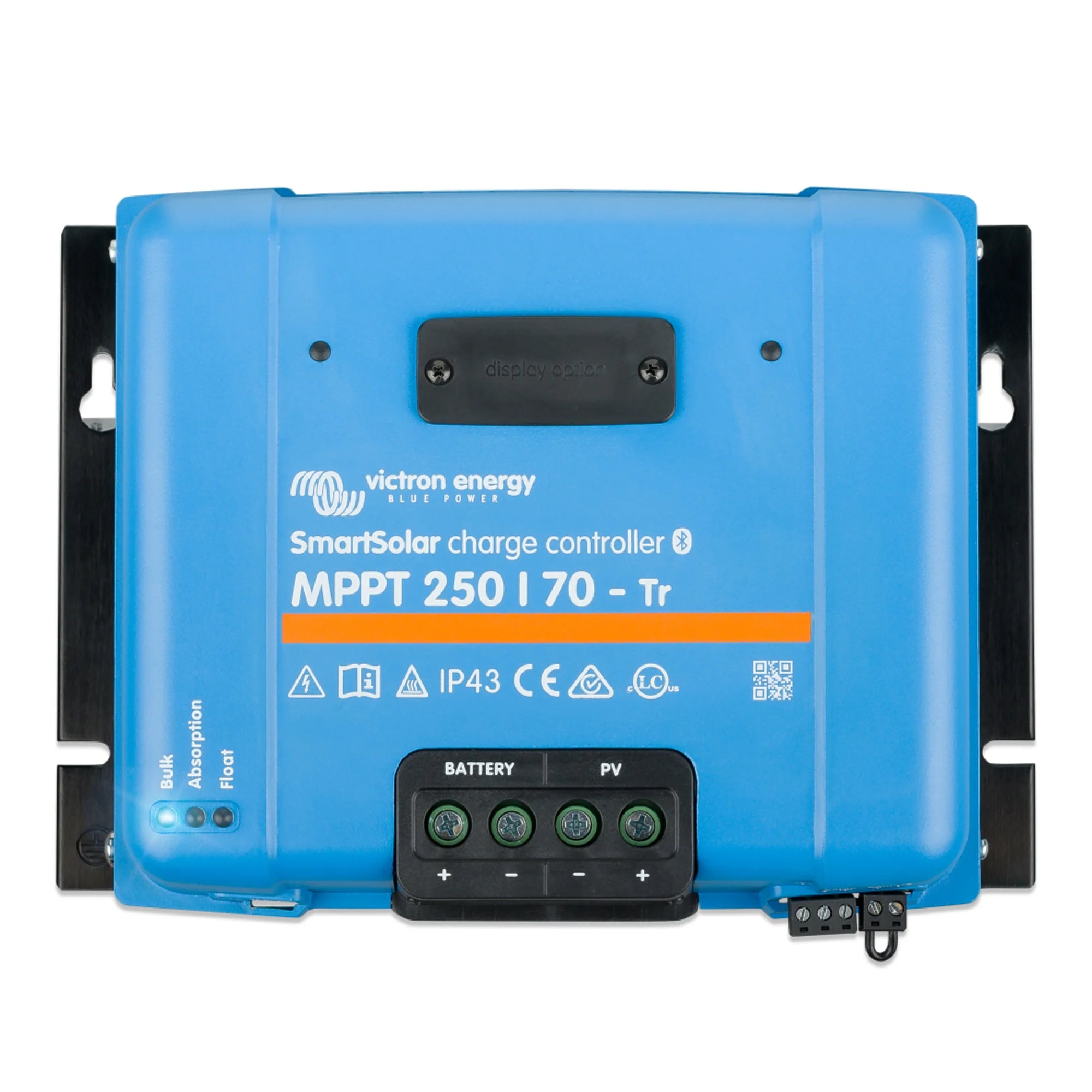

xVictron SmartSolar MPPT 250/70-Tr Solar Charge Controller
The Victron SmartSolar MPPT 250/70-Tr is a solar charge controller rated for a maximum PV open-circuit voltage of 250V and a maximum charge current of 70A. It is designed for professional off-grid and hybrid solar installations where reliable battery charging and remote monitoring are required. The built-in Bluetooth and compatibility with the VictronConnect app make it well suited to trade and commercial installers who need to configure, monitor and log system data without additional hardware.
Key Features
- Maximum PV open-circuit voltage of 250V, supporting larger series-connected panel strings.
- 70A maximum charge current, suitable for substantial battery banks across 12V, 24V and 48V systems.
- Built-in Bluetooth for direct configuration and monitoring via the VictronConnect app on iOS and Android.
- True MPPT algorithm with rapid tracking, maximising energy harvest across varying irradiance conditions.
- TR (screw terminal) connection type for straightforward, secure wiring in fixed installations.
- Supports lithium-ion (LiFePO4), AGM, gel, flooded and other battery chemistries with user-configurable charge profiles.
- Compatible with the Victron GX ecosystem, enabling full system integration via VE.Direct communication port.
- Integrated load output for direct connection of DC loads with programmable control.
Product Overview
The SmartSolar MPPT 250/70-Tr accepts PV array voltages up to 250V open-circuit, which allows installers to wire panels in longer series strings before parallel combining. This reduces cable losses and simplifies array wiring on larger rooftop or ground-mount systems. The 70A output is sufficient to fully charge a 48V battery bank from a PV array of up to approximately 3,500W, depending on system voltage and conditions.
The built-in Bluetooth removes the need for a separate Bluetooth dongle. Using VictronConnect, installers can set charge parameters, view live data, access historical yield logs and run a battery equalisation cycle directly from a phone or tablet. For permanent remote monitoring, the VE.Direct port connects to a Victron GX device (such as a Cerbo GX), enabling full integration with the VRM online portal. The controller does not require a GX device to function, but the combination provides comprehensive system oversight for professional installations.
Charge algorithm selection covers the full range of common battery chemistries. For lithium batteries, a dedicated LiFePO4 profile is available, and the controller can accept a BMS signal to halt charging when required. The TR terminal variant uses screw-type connections on both the PV and battery sides, which are the standard choice for permanent, fixed wiring in enclosures or distribution boards.
Technical Specifications
| Specification | Value |
| SKU | SCC125070221 |
| Maximum PV Open-Circuit Voltage | 250V |
| Maximum Charge Current | 70A |
| Compatible Battery Voltages | 12V, 24V, 48V |
| Connection Type | TR (screw terminals) |
| Communication | Built-in Bluetooth, VE.Direct |
| Weight | 3.2 kg |
| GTIN | 8719076050865 |
Applications
- Off-grid cabins, lodges and rural properties with 12V, 24V or 48V battery systems.
- Commercial off-grid installations requiring high PV input voltage and substantial charge current.
- Marine and vehicle applications where a high-voltage PV array feeds a 12V or 24V service battery bank.
- Hybrid solar systems integrated with a Victron GX device and VRM monitoring.
- Backup power systems with lithium or lead-acid battery banks requiring precise charge management.
- Agricultural and telecoms sites with remote monitoring requirements via VRM.
What Is Included
- Victron SmartSolar MPPT 250/70-Tr charge controller (1 unit)
Installation Notes
This controller handles PV voltages up to 250V, which is classified as low voltage DC but still presents a shock and arc-flash risk. Installation should be carried out by a qualified electrician or MCS-accredited solar installer. Ensure the PV open-circuit voltage does not exceed 250V under any temperature condition, including cold-start scenarios where Voc rises. Battery polarity must be connected correctly before any PV connection is made. For systems connected to a Victron GX device and the VRM portal, a stable internet connection at the site is required for remote monitoring. Lithium battery installations must use a compatible BMS with the appropriate charge enable signal.
