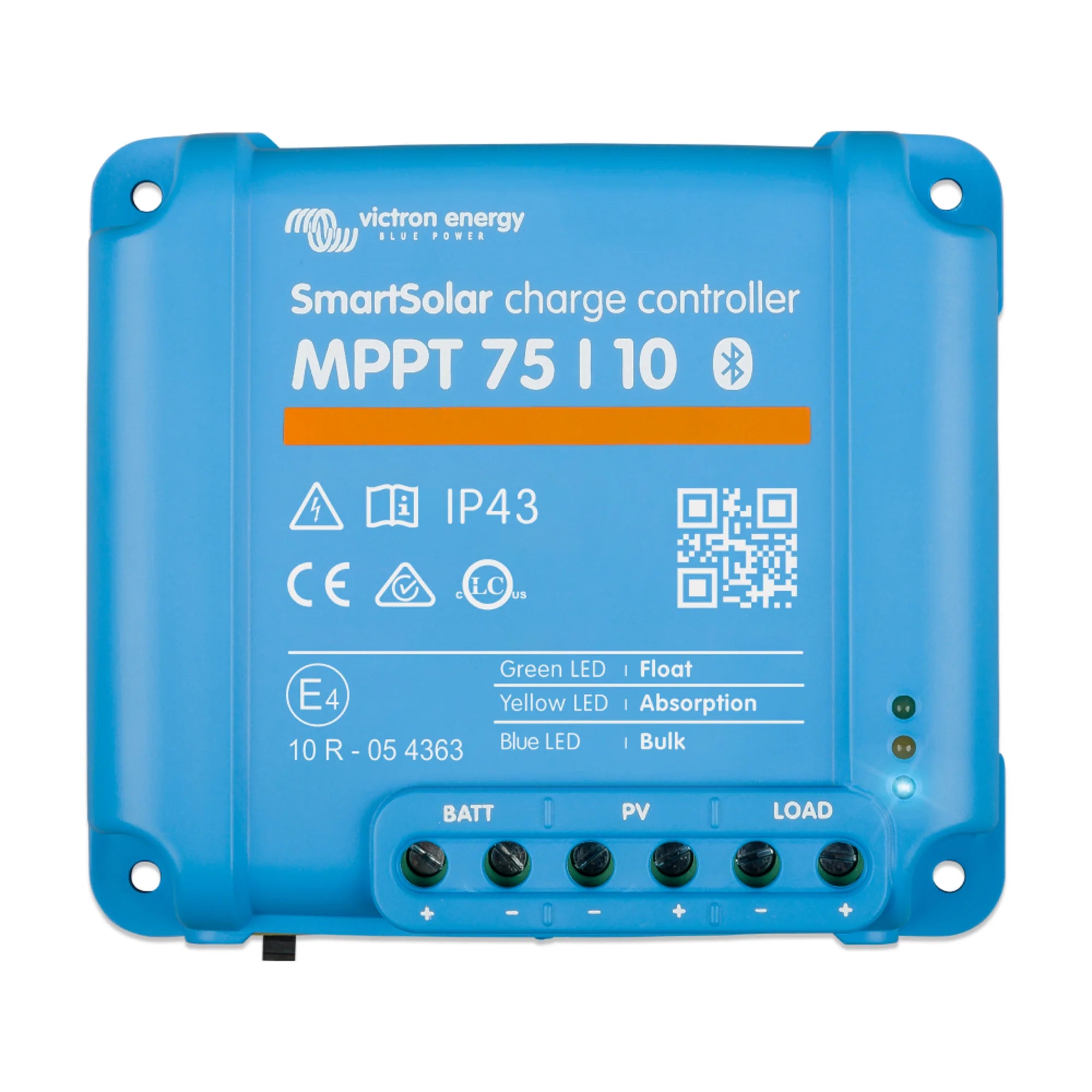

xVictron SmartSolar MPPT 75/10 Charge Controller
The Victron SmartSolar MPPT 75/10 is a solar charge controller designed for small 12V and 24V off-grid systems. It suits caravans, campervans, boats, and small cabin or battery backup installations where a compact, Bluetooth-enabled MPPT controller is required. The built-in Bluetooth removes the need for a separate interface to monitor and configure the unit.
Key Features
- MPPT (Maximum Power Point Tracking) algorithm extracts more energy from the solar panel compared to PWM controllers, particularly in cold or overcast conditions.
- Built-in Bluetooth allows direct connection to the VictronConnect app on iOS and Android for monitoring, configuration and firmware updates without additional hardware.
- Maximum PV open-circuit voltage of 75V, with a maximum charge current of 10A.
- Compatible with 12V and 24V battery systems, with automatic voltage detection.
- Supports lithium (LiFePO4), AGM, gel, flooded and other lead-acid battery chemistries via configurable charge algorithms.
- Load output with street lighting and timer functions for direct control of DC loads.
- Compact and lightweight at 0.36 kg, suitable for installation in confined spaces.
Product Overview
The SmartSolar MPPT 75/10 operates with a maximum PV open-circuit voltage of 75V and a 10A charge current, making it appropriate for panels up to roughly 145W on a 12V system or 290W on a 24V system. The MPPT algorithm continuously tracks the panel's maximum power point, which delivers a meaningful improvement in yield over PWM controllers when conditions are less than ideal.
Bluetooth connectivity is built in as standard. Using the VictronConnect app, installers can set battery type and charge parameters, view live data including PV voltage, current and power, and review historical yield data. No additional dongle or data cable is needed. The controller also supports a VE.Direct port for wired connection to compatible Victron monitoring equipment such as a Cerbo GX or MPPT Control display.
The load output provides up to 10A for directly connected DC loads. It includes configurable street lighting functions with dusk-to-dawn, timer and dimming options, which makes it practical for small lighting circuits in off-grid cabins or boats without requiring a separate load controller.
Specifications
- SKU: SCC075010060R
- Maximum PV open-circuit voltage: 75V
- Maximum charge current: 10A
- Battery system voltage: 12V or 24V (auto-detect)
- Load output: 10A
- Connectivity: Bluetooth (built-in), VE.Direct
- Weight: 0.36 kg
- GTIN: 8719076040798
Applications
- Campervans and motorhomes with a single rooftop panel and a 12V or 24V leisure battery.
- Sailing yachts and motorboats with small solar installations.
- Off-grid garden buildings, cabins or sheds requiring battery charging and a controlled load output.
- Small battery backup systems for remote monitoring or telecoms equipment.
- Portable solar setups where a lightweight, Bluetooth-configurable controller is needed.
What Is Included
- Victron SmartSolar MPPT 75/10 charge controller (retail packaging)
Installation Notes
Ensure the PV panel open-circuit voltage does not exceed 75V under any conditions, including cold temperatures, which raise Voc. Verify battery voltage compatibility (12V or 24V) before connecting. The load output is rated at 10A continuous and should not be used to power inductive loads beyond its rating. While this controller is suitable for competent DIY installation in low-voltage DC systems, connection to lithium battery systems with a BMS should be carried out with an understanding of the charge parameter requirements. For any installation forming part of a larger solar PV system, a qualified installer is recommended.
