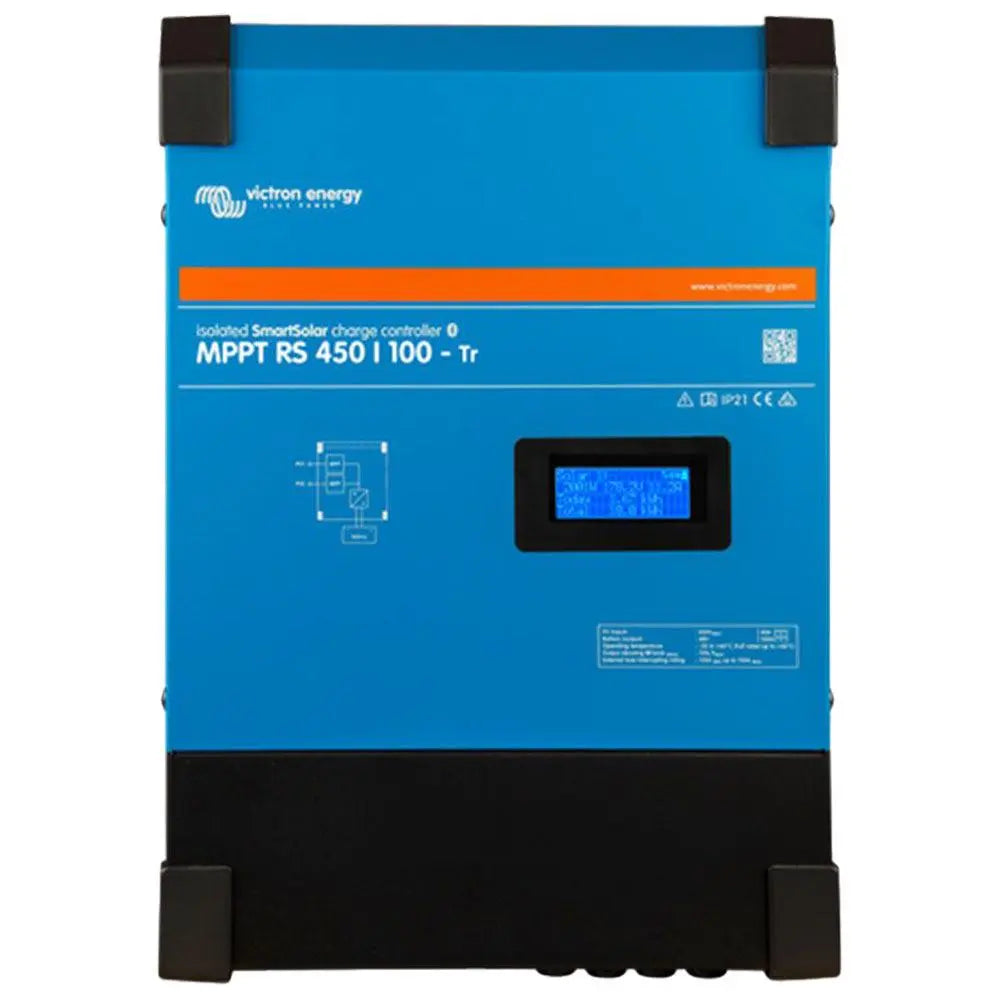

xVictron SmartSolar MPPT RS 450/100-MC4 - SCC145110510
Discover advanced solar management with the Victron SmartSolar MPPT RS, a robust charge controller designed for large solar arrays and versatile battery systems. Whether you're managing a sprawling off-grid setup or a sophisticated grid-connected system, this controller is your gateway to improved energy efficiency and system control.
Key Features:
- Dual Model Capability: Choose between 5.76kW or 11.52kW models to suit your system's power needs.
- Wide Voltage Range: Accommodates a solar voltage input from 65 to 450 VDC, ensuring compatibility with various solar setups.
- Multiple MPPT Trackers: Enhances solar collection efficiency with independent tracking inputs that adjust to multiple roof orientations and shading conditions.
- Enhanced Connectivity: Fully programmable via the VictronConnect app using Bluetooth for easy setup and real-time monitoring.
- Superior Safety Features: Features isolated PV connections and a new metal case design that covers all electrical connections for added safety and durability.
- Active Cooling and Modern Design: Keeps the controller operating efficiently while aligning with the sleek, modern aesthetics of the latest Victron product suite.
Ultra-Fast Maximum Power Point Tracking (MPPT):
The SmartSolar RS efficiently charges your 48V battery bank with options of 100A or 200A outputs. Tailor the charge settings to accommodate different battery chemistries including lead-acid and lithium.
Setup and Monitoring Made Easy:
Control and configure your SmartSolar RS remotely via VictronConnect, offering detailed system insights such as battery and PV performance, historical data, and system trends.
Expandable System Control:
Easily integrate additional SmartSolar RS or VE.Can MPPT units via daisy chaining, allowing for synchronized charge management and consolidated data reporting through a GX device like the Cerbo GX.
Remote System Management:
With a GX device connected to the internet, access the Victron Remote Management Portal (VRM) for comprehensive control and monitoring, ensuring optimal performance anywhere at any time. For remote locations, maintain oversight with optional GlobalLink 520 connectivity.
SmartSolar Display:
Stay informed with the integrated display showing real-time data on battery voltage, charge current, and more. Monitor each solar array independently and check for any system errors directly from the front panel.
I/O Connections and Safety:
Includes options for remote temperature and voltage sensing to enhance system responsiveness and safety. The controller also monitors PV isolation resistance to prevent faults and maintain system integrity.
Specifications
x| Feature | 450/100 | 450/200 |
|---|---|---|
| Battery voltage | 48 V | 48 V |
| Rated charge current | 100 A | 200 A |
| Maximum charge power | 5.8 kW at 57.6 V | 11.5 kW at 57.6 V |
| Charge voltage 'absorption' | Default setting: 57.6 V (adjustable) | Default setting: 57.6 V (adjustable) |
| Charge voltage 'float' | Default setting: 55.2 V (adjustable) | Default setting: 55.2 V (adjustable) |
| Programmable voltage range | Minimum: 36 V Maximum: 60 V |
Minimum: 36 V Maximum: 60 V |
| Charge algorithm | Multi-stage adaptive (adjustable) | Multi-stage adaptive (adjustable) |
| Battery temperature sensor | Included | Included |
| Maximum efficiency | 96 % | 96 % |
| Self-consumption | 15 mA | 15 mA |
| Maximum DC PV voltage | 450 V | 450 V |
| Start-up voltage | 120 V | 120 V |
| MPPT operating voltage range | 65 – 450 V | 65 – 450 V |
| Number of trackers | 2 | 4 |
| Max. PV operational input current | 16 A per tracker | 20 A per tracker |
| Max. PV short circuit current | 20 A per tracker | 25 A per tracker |
| Max. DC output charging power | 5760 W total | 11520 W total |
| Maximum PV array size per tracker | 7200 Wp (450 V x 16 A) | 9000 Wp (450 V x 20 A) |
| PV Isolation fail level | 100 kΩ | 100 kΩ |
| Synchronised Parallel Operation | Yes, up to 25 units with VE.Can | Yes, up to 25 units with VE.Can |
| Programmable relay | Yes | Yes |
| Protection | PV reverse polarity Output short circuit Over temperature |
PV reverse polarity Output short circuit Over temperature |
| Data communication | VE.Direct port, VE.Can port & Bluetooth | VE.Direct port, VE.Can port & Bluetooth |
| Bluetooth frequency | 2402 – 2480 MHz | 2402 – 2480 MHz |
| Bluetooth power | 4dBm | 4dBm |
| General purpose analogue/digital in port | Yes, 2x | Yes, 2x |
| Remote on-off | Yes | Yes |
| Operating temperature range | -40 to +60 °C (fan assisted cooling) | -40 to +60 °C (fan assisted cooling) |
| Humidity (non-condensing) | max 95 % | max 95 % |
| Material & Colour | steel, blue RAL 5012 | steel, blue RAL 5012 |
| Protection category | IP21 | IP21 |
| Battery-connection | 2x M8 bolts, 1x positive and 1x negative | 4x M8 bolts, 2x positive and 2x negative |
| Power terminals PV input | 1 pair of male and female MC4 connectors per tracker | 1 pair of male and female MC4 connectors per tracker |
| Weight | 7.9 kg | 13.7 kg |
| Dimensions (h x w x d) in mm | 440 x 313 x 126 | 487 x 434 x 146 |
| Safety | EN-IEC 62109-1, EN-IEC 62109-2 | EN-IEC 62109-1, EN-IEC 62109-2 |
| Country of Origin | Designed in The Netherlands made in India |
Designed in The Netherlands made in India |
