Description

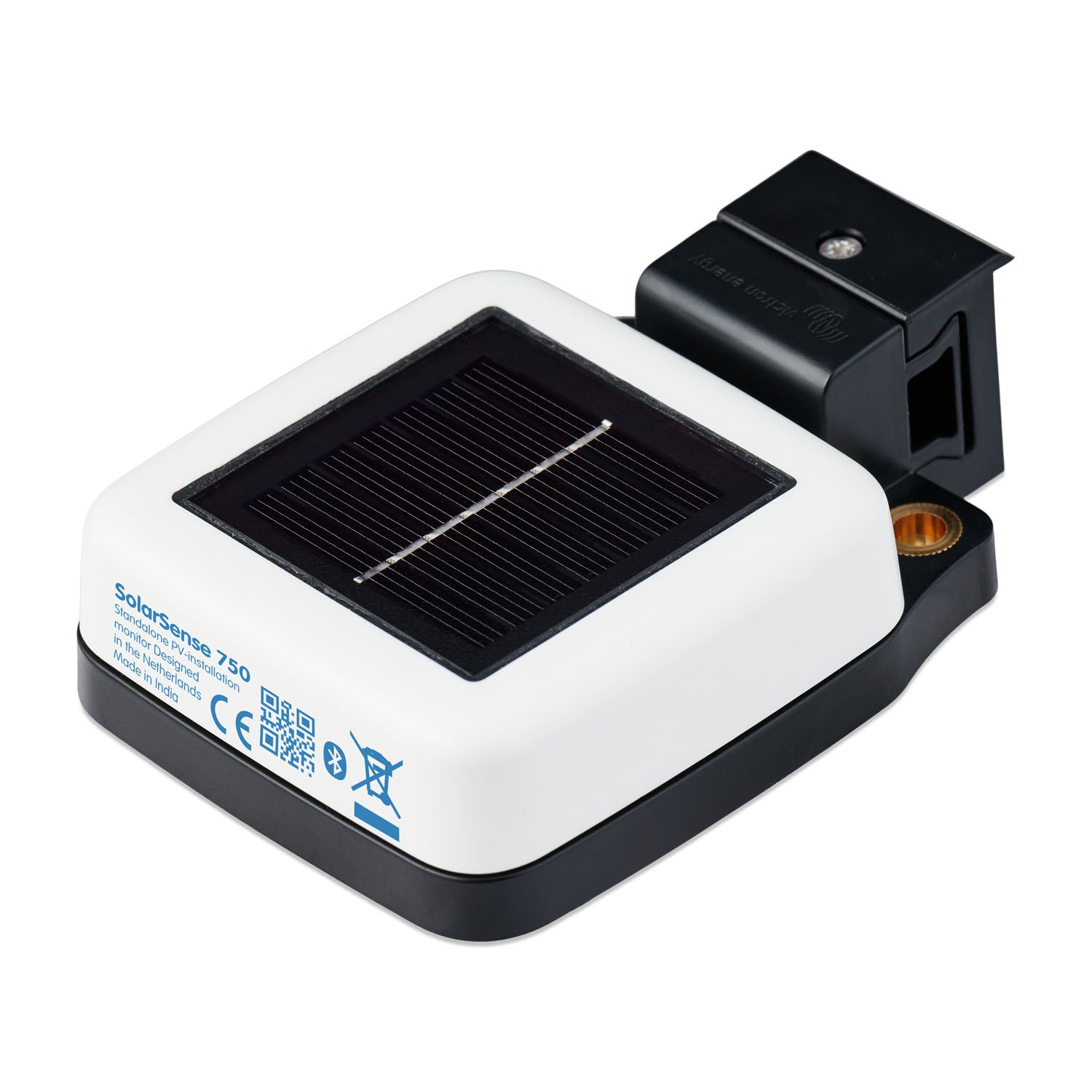

xVictron SolarSense 750 Wireless PV Installation Monitor – SLS300175100
The Victron SolarSense 750 is a self-powered, wireless monitor that measures solar irradiance, estimated available PV power and panel temperature in real time. It connects to the VictronConnect app, VRM portal and Node-RED, making it straightforward to integrate into manual monitoring or automated energy management routines.
It is particularly useful in off-grid and grid-limited systems where solar charging is sometimes restricted. The inverter or charge controller output tells you what the system is producing. The SolarSense 750 tells you what the array could produce, which is a different and often more useful number.
Key Features
- Self-powered with integrated solar cell, no external wiring needed
- Wireless communication via Bluetooth Low Energy (BLE) Instant Readout
- Measures solar irradiance to estimate available PV power
- Monitors panel temperature for accurate performance assessment
- Works with VictronConnect app for live local data access
- Integrates with VRM for remote monitoring and historical analysis
- Compatible with Node-RED for automated load control
- Useful for new installation planning, panel orientation checks and shading analysis
- Mounts directly to the PV array frame
Product Overview
In off-grid and grid-limited solar systems, excess PV energy is often lost once the battery is fully charged. The SolarSense 750 shows how much power is available from the array at any given moment, which allows users or automation platforms to switch additional loads on at the right time. Water heaters, pumps and other opportunity loads that would otherwise run on grid or generator later in the day can instead run on available solar.
The SolarSense 750 is also a practical commissioning and diagnostic tool. Comparing available solar radiation against actual MPPT output makes it straightforward to spot shading problems, panel degradation, incorrect orientation or system inefficiencies that would otherwise need specialist equipment to find.
Note on Bluetooth range: Metal structures, solar panel frames and roofing materials can reduce BLE range. Position the unit accordingly during installation.
Available Monitoring Data
| Parameter | Description |
| Irradiance | Available solar radiation for PV performance estimation |
| Available power | Estimated PV power available from the array |
| Panel temperature | Panel operating temperature for performance assessment |
| Daily min / max solar power | Estimated daily minimum and maximum available power in kW |
| Estimated daily yield | Estimated solar energy yield in kWh |
Applications
- Off-grid solar systems with battery storage
- Hybrid and grid-limited solar installations
- Victron systems using Node-RED for automated load switching
- Opportunity load control such as water heating and pumping
- PV array commissioning and performance checking
- Pre-sales solar site surveys and panel orientation testing
What Is Included
- 1 x Victron SolarSense 750 monitor unit (SLS300175100)
- Mounting hardware for PV frame installation
Installation Notes
Mount the SolarSense 750 on or near the PV array in a position that represents the solar exposure of the panels. It requires no external power connection. Configure via the VictronConnect app over Bluetooth. Professional installation is recommended for all solar PV systems.
Specifications
xTechnical Specifications – Victron SolarSense 750 (SLS300175100)
| Parameter | Value |
| Part number | SLS300175100 |
| Power supply | Self-powered (integrated solar cell) |
| Internal battery | Rechargeable 40mAh / 3.6V |
| Operating temperature range | -40°C to +85°C |
| Irradiance resolution | 0.1 W/m² |
| Estimated solar power resolution | 1W |
| Daily yield resolution | 1Wh |
| Temperature resolution | 0.1°C |
| Trend data storage | 31 days (irradiance, power, temperature) |
| History data storage | 730 days (daily min/max irradiance, power, temperature, yield) |
| Communication | Bluetooth Low Energy (BLE) Instant Readout |
| IP rating | IP65 |
| Dimensions (H x W x D) | 110 x 78 x 32mm |
| Weight (including packaging) | 200g |
| Material | Black PPO/PPE, White PC |
| Mounting holes | 2 x 6.5mm diameter |
| EMC standard | EN-IEC 62052-11 |
