Description

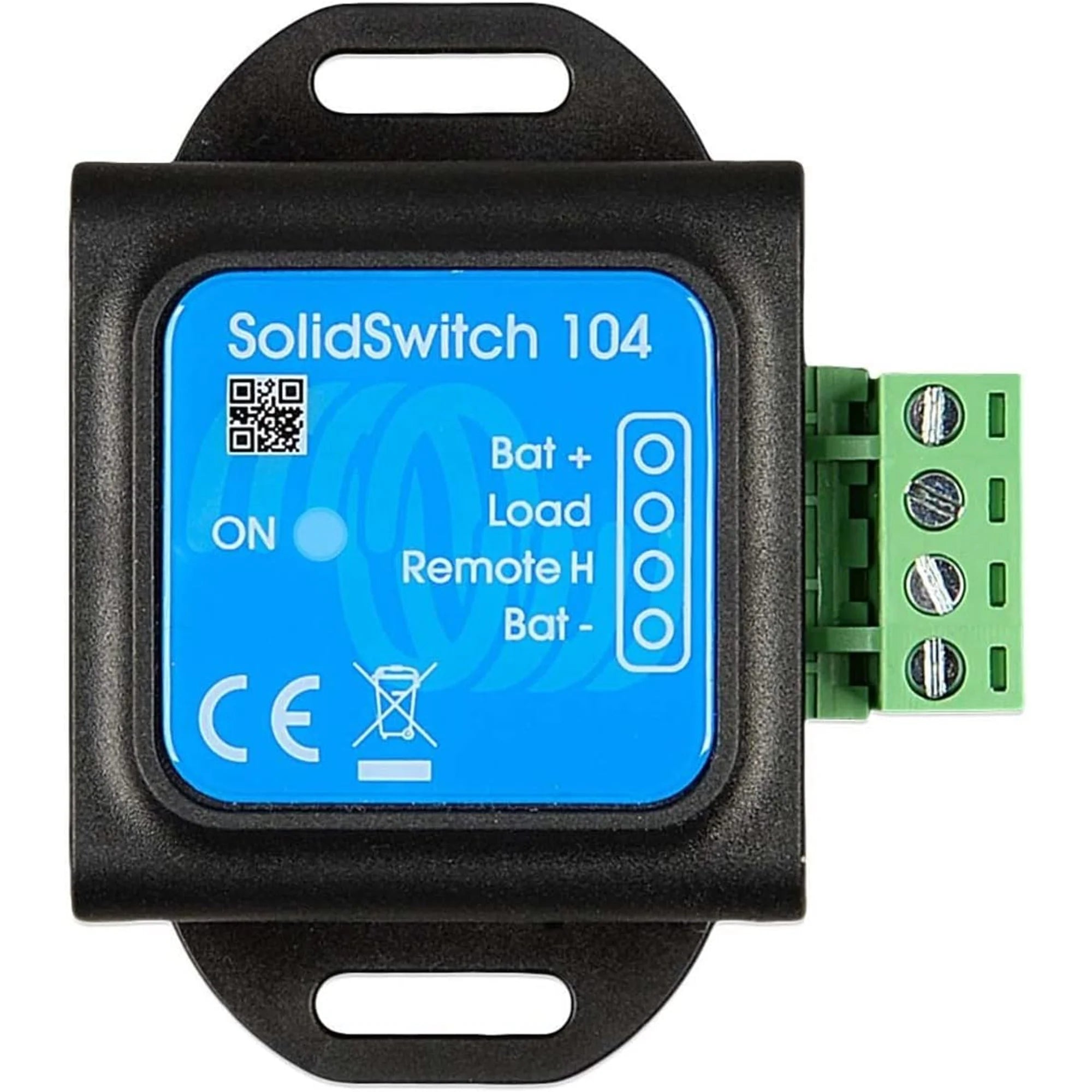

xVictron Energy SolidSwitch 104
The SolidSwitch 104 is a solid-state load switching module designed for use with Victron Battery Management Systems. It provides a controlled, low-loss switching path for DC loads, replacing mechanical relays in BMS-controlled circuits. Suitable for professional battery system integrators and off-grid installers working with Victron BMS products.
Key Features
- Solid-state design eliminates mechanical relay wear, providing a longer service life in cycling applications.
- Controlled directly by Victron BMS output signals, allowing the BMS to disconnect loads under fault or low-voltage conditions.
- Compact and lightweight at 32.5 g, suitable for installation in space-constrained enclosures.
- Low on-state resistance reduces heat generation and power loss compared to conventional relay switching.
- Compatible with Victron BMS product range for use in lithium battery systems requiring load disconnection control.
Product Overview
The SolidSwitch 104 acts as the switching interface between a Victron BMS and a DC load circuit. When the BMS detects an out-of-range condition (such as over-voltage, under-voltage or over-temperature), it signals the SolidSwitch 104 to open the load circuit, protecting the battery from damage. This is a standard protection architecture in lithium battery installations where load disconnection must be fast and reliable.
Unlike a mechanical relay, a solid-state switch has no moving parts and does not suffer from contact arcing or bounce. This makes it well suited to systems where the BMS may switch loads frequently, or where vibration is a factor. The module is wired directly into the load output path and controlled via the BMS load disconnect signal line.
Specifications
- SKU: BMS800200104
- GTIN: 8719076055556
- Weight: 32.5 g
Applications
- Load disconnection control in Victron BMS-managed lithium battery systems.
- Off-grid and mobile power systems requiring solid-state load switching.
- Marine and vehicle installations where vibration makes mechanical relays unreliable.
- Battery protection circuits in custom enclosures and professional battery builds.
What Is Included
- 1 x Victron Energy SolidSwitch 104 module
Installation Notes
The SolidSwitch 104 must be installed by a qualified electrician or experienced battery systems integrator familiar with Victron BMS wiring. It is intended for use within a correctly designed BMS load disconnect circuit and should not be used outside its rated parameters. Lithium battery systems carry significant energy and must be installed in accordance with applicable wiring regulations. Consult the Victron BMS documentation for correct wiring of the load disconnect signal and load output connections.
