Description

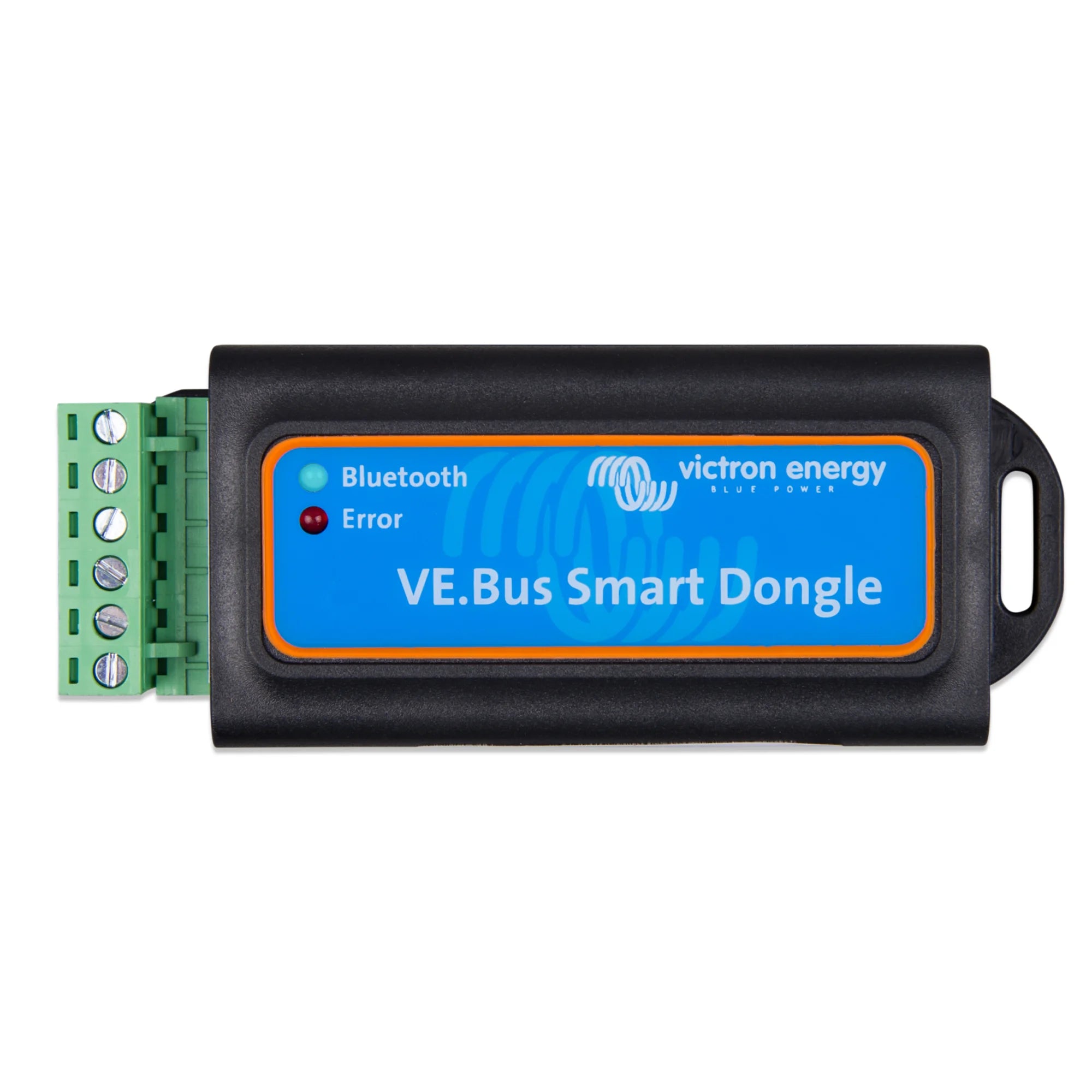

xVictron VE.Bus Smart Dongle
The VE.Bus Smart Dongle connects to any VE.Bus compatible Victron inverter or inverter/charger and adds Bluetooth monitoring via the VictronConnect app. It is aimed at installers and system owners who need live system data without a full GX device or panel installation.
Key Features
- Connects directly to the VE.Bus port on compatible Victron inverters and inverter/chargers.
- Provides Bluetooth access to VictronConnect for real-time monitoring on iOS and Android devices.
- Displays AC input and output voltage, current, frequency, and state of charge where applicable.
- Allows switching of the inverter or inverter/charger between on, off, and charger-only modes via the app.
- Supports firmware updates to the connected VE.Bus device over Bluetooth using VictronConnect.
- Compact and lightweight at 80 g, requiring no external power supply beyond the VE.Bus connection.
- Compatible with Multiplus, Multiplus-II, Quattro, and other VE.Bus enabled Victron devices.
Product Overview
The VE.Bus Smart Dongle plugs directly into the VE.Bus RJ45 port on compatible Victron inverters and inverter/chargers. Once connected, it draws power from the bus and broadcasts data over Bluetooth to the VictronConnect app. No additional wiring, power supply, or configuration hardware is required for basic monitoring and control.
For installations where a full GX device such as a Cerbo GX is not fitted, the dongle provides a practical way to check system status, adjust operating mode, and push firmware updates from a phone or tablet. This is particularly useful during commissioning, service visits, or in smaller off-grid systems where a permanent monitoring screen is not justified.
It is worth noting that the dongle does not replace a GX device for full data logging, MQTT, VRM portal integration, or multi-device system monitoring. Its scope is single-device Bluetooth access. For systems requiring remote monitoring over the internet or integration with other Victron components, a GX device remains necessary.
Specifications
- SKU: ASS030537010
- GTIN: 8719076035558
- Weight: 0.08 kg
- Connection: VE.Bus (RJ45)
- Communication: Bluetooth (VictronConnect app, iOS and Android)
- Power supply: Powered via VE.Bus port (no external supply required)
Applications
- Commissioning and fault-finding on Multiplus and Quattro inverter/chargers without a GX device on site.
- Monitoring and mode switching in small off-grid cabins, boats, and vehicles where a full display panel is not installed.
- Firmware updates to VE.Bus devices in the field using a smartphone.
- Temporary Bluetooth access during service visits to systems that do not have a permanent monitoring solution.
- Retrofit monitoring for existing Victron VE.Bus installations where adding a GX device is not practical or cost-effective.
What Is Included
- 1 x VE.Bus Smart Dongle (ASS030537010)
Installation Notes
The dongle connects to the VE.Bus RJ45 port on the inverter or inverter/charger. Ensure the connected device is powered before pairing via VictronConnect. Although the physical connection is straightforward, any work on inverter or battery systems should be carried out by a qualified electrician or accredited installer. For grid-connected systems, ensure the installation complies with G98 or G99 requirements as applicable. Do not connect the dongle to non-VE.Bus RJ45 ports, as these carry different signals and may cause damage.
