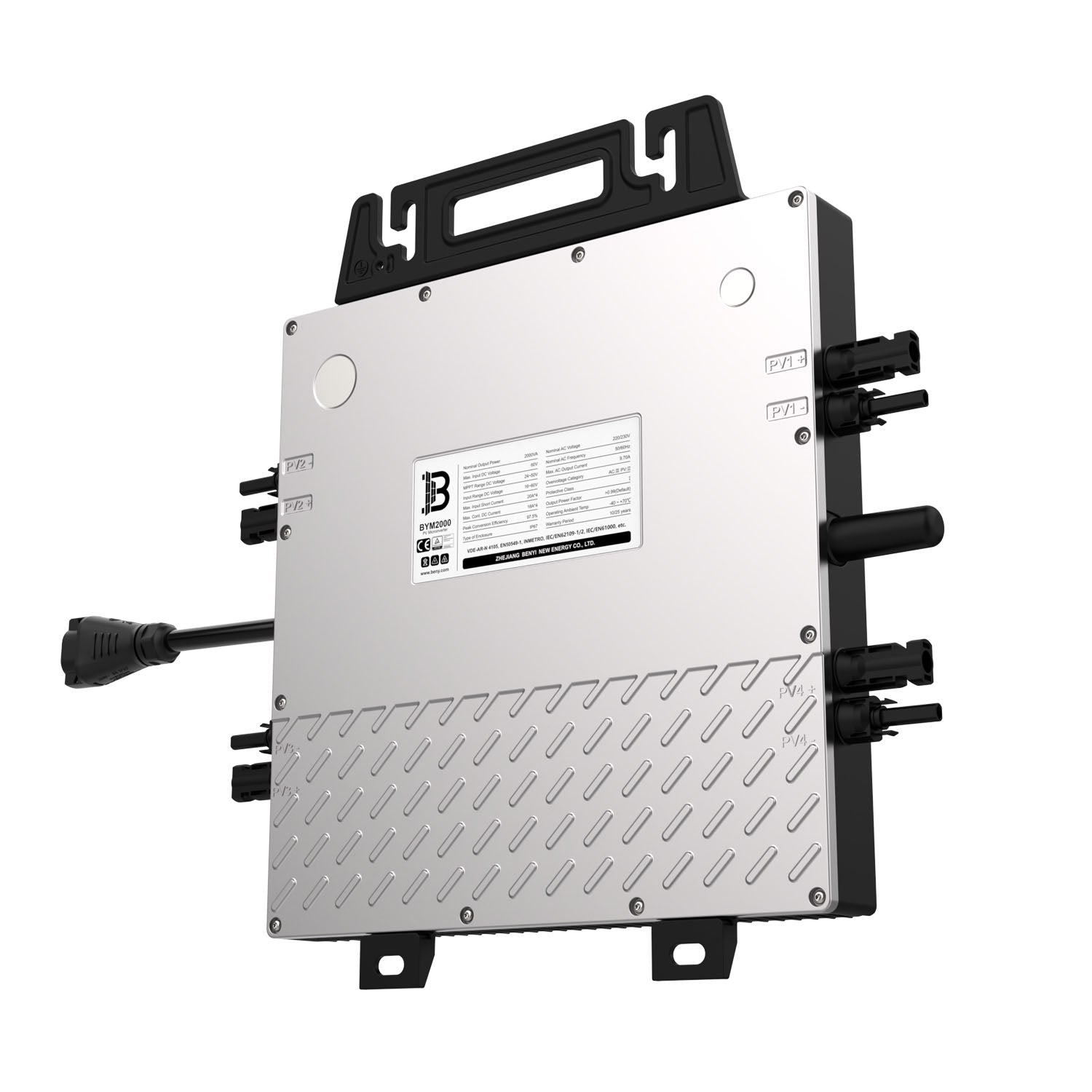

xVoltacon BYM2000 2000W Solar Micro Inverter Quattro MPPT WiFi 230V IP67
PRE- ORDER NOW
The Voltacon BYM2000 is a powerful 2000W solar micro inverter designed for high-performance grid-connected solar systems. Built with four independent MPPT trackers, this advanced quattro MPPT micro inverter can operate up to 4 solar panels from one compact unit, helping every module perform at its best for improved energy harvest and better long-term system efficiency.
Unlike conventional string inverter systems, the BYM2000 is installed close to the solar panels, which helps eliminate long and complex DC cable runs and creates a safer AC-coupled solar system at 230V. This reduces installation complexity and offers a cleaner, more flexible design for residential rooftops, outbuildings, garages, garden rooms and small commercial projects.
Quattro MPPT technology for higher solar yield
Each connected solar panel benefits from its own dedicated MPPT tracker. This means the inverter can optimise the output of every module individually, which is especially useful where shading, roof direction, panel mismatch or uneven sunlight conditions may reduce the performance of a traditional string inverter system.
The BYM2000 is suitable for up to 4 solar panels and is designed for modern PV modules. Its quattro MPPT architecture gives installers and end users greater flexibility while helping to maximise real-world solar generation across the whole array.
Safe AC-coupled design with simpler installation
Micro inverter systems are widely valued for their safer low DC voltage design. Because the inverter is fitted next to or underneath the solar panels, there is less need to route high-voltage DC wiring through the building. This improves overall safety and simplifies the installation compared with many conventional solar inverter layouts.
The BYM2000 creates a pure AC-coupled solution at 230Vac, requiring only a straightforward connection to the house electrical system or consumer unit. This makes it a practical choice for customers looking for a reliable and modern solar solution that is easier to design and install.
High efficiency and smart monitoring
The BYM2000 delivers a rated output power of 2000VA and offers excellent conversion performance for demanding solar applications. It features high MPPT efficiency, low night-time power consumption and intelligent module-level monitoring. Communication is available through PLCC, with WiFi available as an option for easier digital monitoring and system visibility.
Its robust IP67 enclosure makes it ideal for outdoor installation, while the compact industrial design ensures long service life in harsh environments. This inverter is built for dependable operation in a wide range of weather conditions and is designed to support modern solar installations where safety, flexibility and yield matter most.
Key features
- 2000W rated output micro inverter
- Quattro MPPT design with 4 independent MPPT trackers
- Suitable for up to 4 solar panels
- 230V AC output for grid-connected solar systems
- Safer AC-coupled design with reduced DC cabling
- Smart module-level monitoring
- PLCC communication with optional WiFi
- IP67 waterproof and dustproof protection
- High efficiency for improved solar conversion
- Compact design for simple installation under or near the solar panels
- Suitable for residential and small commercial solar projects
- Warranty up to 25 years
Ideal applications
The Voltacon BYM2000 is ideal for residential solar rooftops, garden offices, garages, sheds, balcony solar systems and small commercial installations where panel-level optimisation and safe AC output are important. It is an excellent option for customers seeking a high-output micro inverter that combines smart monitoring, installation flexibility and reliable outdoor performance.
Specifications
x| Model | BYM2000 |
| Micro Inverter Type | Quad-input micro inverter |
| Number of MPPT Trackers | 4 |
| Suitable Number of Solar Panels | 4 panels |
| Recommended PV Input Power | (450 to 750)W × 4 |
| MPPT Voltage Range | 24V to 50V |
| Operating Voltage Range | 16V to 60V |
| Maximum Input Voltage | 60V |
| Maximum Short Circuit Current | 20A × 4 |
| Maximum Continuous Input Current | 18A × 4 |
| Rated Output Power | 2000VA |
| Rated Output Voltage | 230V |
| AC Voltage Range | 176V to 265V |
| Rated Frequency | 50Hz / 60Hz |
| Frequency Range | 46.5Hz to 62Hz |
| Maximum Continuous Output Current | 9.10A |
| Power Factor | >0.99 |
| Total Harmonic Distortion | <4% |
| Peak Efficiency | 97.5% |
| European Efficiency | 97% |
| MPPT Efficiency | >99.8% |
| Static MPPT Efficiency | 99.80% |
| Night Power Consumption | <100mW |
| Communication | PLCC / Wi-Fi optional |
| Protection Rating | IP67 |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 0 to 98% |
| Isolation | High-frequency transformer, electrically isolated |
| Dimensions | 389 × 302 × 43 mm |
| Weight | 7.45 kg |
| Warranty | Up to 25 years |
