Description

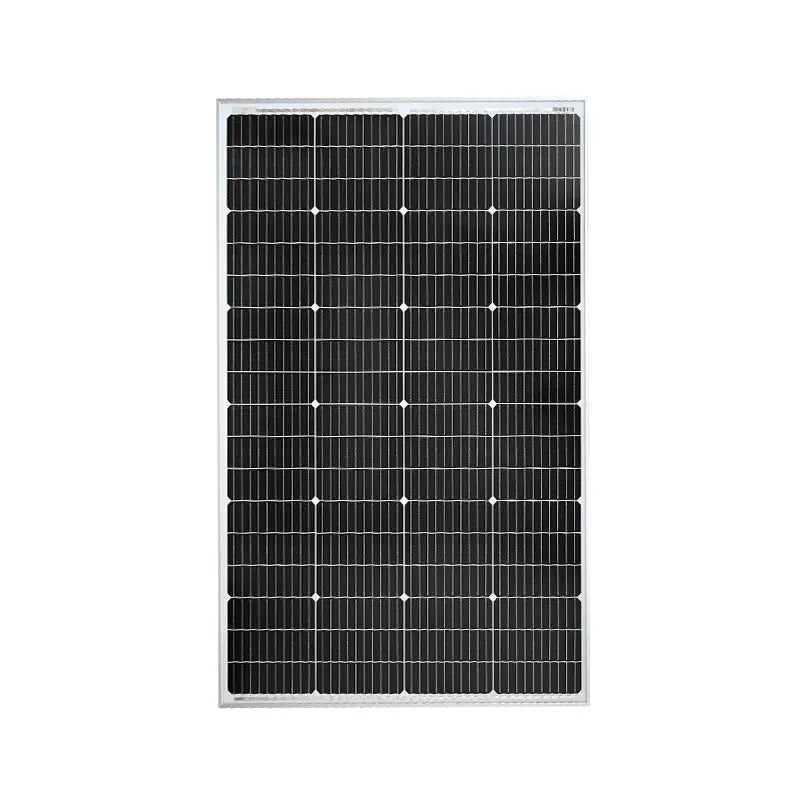

xVoltacon Energy Solar Panel 12V 180W Monocrystaline - Aluminium Frame - Off Grid
We bring the comfort of your home on the road...
Compact size, lightweight photovoltaic panel, it is ideal for motorhomes, campervans, boats, and mobile applications, including balconies.
A sturdy, anodized aluminium frame allows modules to be easily roof-mounted. The highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance. High-performance bypass diodes minimize the power drop caused by shade.
Dimensions: 1200mm x 770mm x 30mm
Weight : 10kg . Pre fitted with 900mm pair of cables with connectors
Characteristics
-
Low voltage-temperature coefficient enhances high-temperature operation.
-
Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
-
25-year limited warranty on power output and performance.
-
10-year Limited warranty on materials and workmanship.
-
Sealed, waterproof, multifunctional junction box gives a high level of safety.
-
High-performance bypass diodes minimize the power drop caused by shade.
-
Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
-
A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
-
The highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
-
Pre-wired quick-connect system with MC4 connectors.
Technical Specifications
| Maximum power(Pmax) | 180W |
| Open-circuit voltage(Voc) | 24.5V |
| Voltage at Pmax(Vmp) | 20.9V |
| Short-circuit current(Isc) | 9.04A |
| Current at Pmax(Imp) | 8.62A |
| Cells Efficiency(%) | 22.70% |
| The maximum system voltage | 1000V |
| Power temperature coefficient | -0.35%/℃ |
| Voltage temperature coefficient | -0.275%/℃ |
| Current temperature coefficient | 0.045%/℃ |
| Output power tolerance | ±3% |
| Operating Temperature | -40℃~85℃ |
Specifications
x|
Brand |
Voltacon Energy |
|---|---|
|
Manufacturer Part Number |
SGM2-180 |
|
GTIN |
0604947935823 |
|
Voltage |
12V |
|
Nominal Power |
180W |
|
Cell Type |
Monocrystalline |
|
Number of Cells in Series |
72 (4X18) |
|
Maximum System Voltage |
1000V |
|
Dimensions |
L1200 x W770 x D30mm |
|
Weight |
10Kg |
|
Warranty |
10 Years |
|
Country of Manufacture |
China |
|
Open Circuit Voltage |
24.5V |
|
Voltacon at Pmax (Vmp) |
20.9V |
|
Short Circuit Current |
9.04A |
|
Current at Pmax (Imp) |
8.62A |
|
Cell efficiency |
22.7% |
|
Power temperature coefficient |
-0.35%/℃ |
|
Voltage temperature coefficient |
-0.275%/℃ |
|
Current temperature coefficient |
0.045%/℃ |
|
Output power tolerance |
±3% |
|
Operating Temperature |
-40℃~85℃ |
