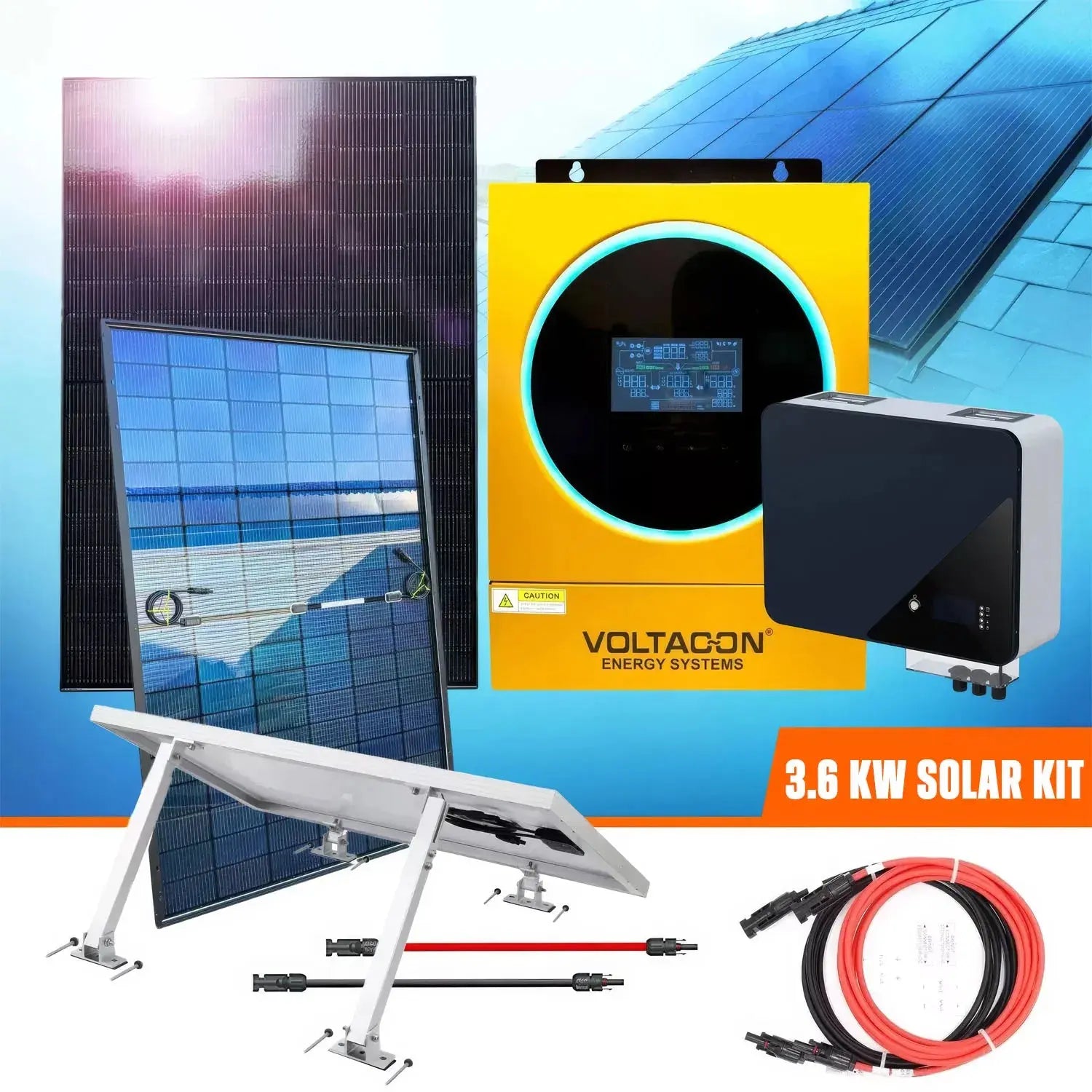

xVoltacon 3.6kW Off-Grid Solar Kit – Lithium Battery, Solar Panels and Complete Accessories
A complete off-grid solar kit delivering 3600W continuous AC output. The core of the system is a Voltacon 3.6kW solar inverter with integrated MPPT battery charger. The kit includes 6 x 440W bifacial panels, a 2.5kWh 24V lithium battery, 25 metres of DC solar cable, AC consumer unit, DC protection devices, mounting kit and a full wiring diagram. One additional lithium battery can be added to expand storage. Up to 16 batteries can be connected in parallel.
Key Features
- 3.6kW continuous AC output, pure sine wave
- 2.5kWh 24V lithium battery with active cell balancing and IP65 enclosure
- 2640W PV array from 6 x 440W bifacial panels
- Battery expandable: up to 16 units in parallel
- 25 metres red and 25 metres black 6mm² solar DC cable
- AC consumer unit with surge protection
- DC battery isolator with 2 x 100A fuses (Mersen)
- 2 x solar string fuses and DC PV isolator
- AC isolator 25A
- Mounting kit for 6 panels: adjustable tilt 15–30°
- Wiring diagram and setup instructions included
- Warranty: 1 year inverter, 5 years battery, 30 years panels
Battery Specifications
| Parameter | Value |
| Model | LIO-II-2410 |
| Nominal capacity | 2.5kWh / 100Ah |
| Nominal voltage | 25.6V DC |
| Continuous discharge | 50A |
| Peak discharge | 100A |
| Enclosure | IP65 aluminium, indoor or outdoor |
| Dimensions | 165 x 375 x 400mm / 26kg |
| Max parallel units | Up to 16 |
What Is Included
- 1 x Voltacon 3.6kW solar inverter with MPPT charger 230VAC
- 1 x 2.5kWh 24V lithium battery (expandable)
- 6 x 440W bifacial solar panels (2640W total)
- 25m red and 25m black 6mm² solar DC cable
- 2 x solar panel connectors
- 5m 6mm² 3-core AC cable 230V
- 1 x AC consumer unit with surge protection
- 2 x solar string fuses
- 1 x solar panel DC isolator
- 1 x AC isolator 25A
- 6 x panel mounting kit (adjustable 15–30° tilt)
- 1 x Mersen DC battery isolator with 2 x 100A fuses
- Wiring diagram and setup instructions
Applications
- Off-grid homes, remote buildings and cabins
- Backup power for essential loads
- Agricultural buildings and workshops without grid connection
Installation Notes
Installation should be carried out by a qualified installer. Additional lithium battery modules cost £890 inc. VAT per unit. If a different mounting configuration is required, contact us and we will adjust the kit free of charge. Full wiring diagram is included.
