Description
xInjet Eco Tethered Smart 7.4kW AC Wall charger
PEN Protection, LCD, 7.4kW max charging power at 32Amps. Earthing rod is not required

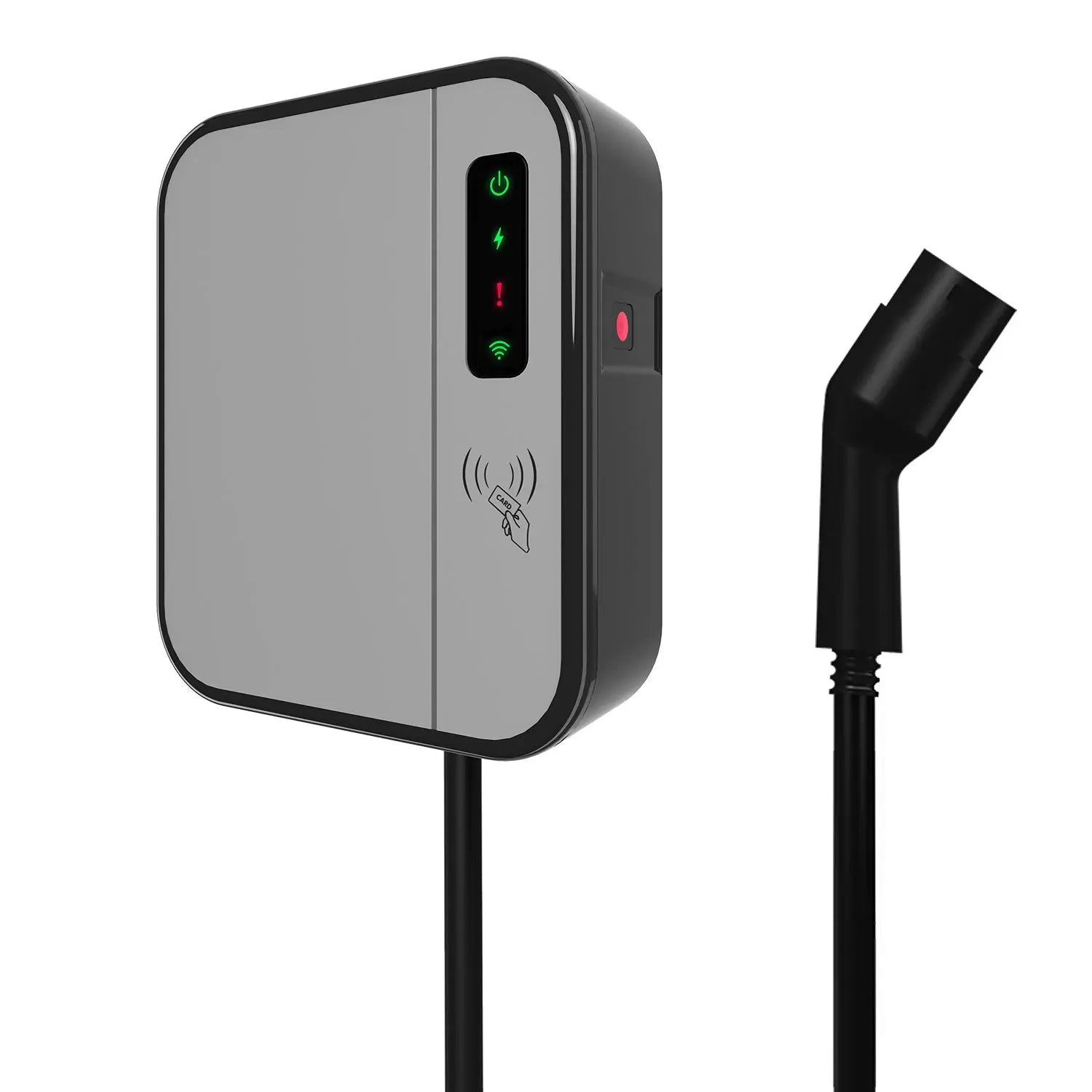

ELECTRIC VEHICLE CHARGER (EV) SPARKY BY VOLTACON 7.4KW, 11KW AND 22KW
Meet Sparky, the new EV Charger that sparks a conversation with your car. Made by Voltacon — the brand revolutionizing independent power generation — Sparky is a safer, smarter and more sustainable EV charger. This quality EV charger has full certification in the UK and Europe.
The charger is also ENA Approved
UK Standard, 7.4kW, Type 2 Connector, 5m Cable, WiFi+BT, OCPP1.6 FULL+Secuity 3, UKCA Certification, Integrated PEN Protection, Tampering Protection,
Part Number: LT-iMHN-07K0-CBUK
Key Features
- Complete unit
- Online monitoring
- Bluetooth and Wi-Fi connectivity
- LCD screen with real-time information about the state of the charge
- Historic energy data is accessible from a mobile app or directly from the wallbox display
- Complies with the latest BSI and 18th Edition IET wiring regulations
- Made for direct outdoor installation with IP65 housing and toughened plastic casing
- Compatible with all Type 2 vehicles
- Fitted with a 5-meter cable
- Type A 30mA+6mA DC leakage protection
- 5-year warranty
Safer And Simpler
- The built-in protective earth neutral (PEN) eliminates the need for an earth rod and simplifies installation.
- Sparky EV chargers protect everyone from the dangerous electrical ground. PEN fault protection monitors your electrical system and automatically disconnects all poles including the earth conductor in the event of a fault.
- The RFID card controller is an extra safety feature. Use it to restrict access to the charger.
Smarter
- Bluetooth and Wi-Fi connectivity gives you easy access to a range of charging data and allows you to program charging times.
Which Charger?
- For domestic charging, the 7.4kW is the absolute maximum permitted for a single-phase system at 32A.
- For three-phase commercial systems, there are two Sparky products, the 11kW and 22kW.
Specifications
x| Phase Number | 1-phase |
| Model | HM10132 |
| AC Power Input Rating | 230VAC, 50/60Hz |
| Power Wiring | 3 Wire - L1, N plus PE |
| AC Output Rating Power | 7kW |
| AC Output Rating Current | 32A |
| Connector Type | IEC 62196-2, Type 2 plug + 5m charging cable |
| Connector Mechanical Operating Life | >= 10000 times (Plug in & pull out with no load) |
| USER INTERFACE & CONTROL | |
| Charging Control | APP-controlled, Butto-controlled, Card-controlled |
| Display screen | 3.5-inch LCD screen (Optional) |
| Indicators | 1 LED Indicator with multiple colors ~Power/Charging/Fault/Network |
| Communication interface (Optional) | Wifi (2.4/5GHz) or Bluetooth |
| ENVIRONMENTAL | |
| Storage Temperature | -40 to 75ºC ambient |
| Operating Temperature | -30 to 55ºC ambient |
| Operating Humidity | Up to 95% non-condensing |
| Altitude | <= 2000m |
| PROTECTION | |
| IP Code | IP65 |
| Short Circuit Protection | Yes |
| Over Load Protection | Yes |
| Over Voltage Protection | Yes |
| Under Voltage Protection | Yes |
| Over-temp Protection | Yes |
| Leakage Protection | Yes, Type B Residual Current Monitoring Unit built-in |
| Ground Protection | Yes, designed for TN-C-S power supply system |
| No earth electrodes Protection | Optional, designed for the UK and other regions using TN-C power supply system |
| OPTIONAL FUNCTION | |
| Load balance via RS-485 | Work with RS-485 version M3 Charge-Mate (require additional purchase) |
| WALLBOX MECHANICAL | |
| Dimension (HxWxD, mm) | 400x210x145 |
| Weight | < 9Kg |
| Charging Cable Length (total) | 5m or customize length (<= 7.5m) An external Case B charging socket without charging cable is optional |
| Enclosure Material | PC |
| MOUNTING POEL MECHANICAL (Optional) | |
| Dimension (HxWxD, mm) | 1117x240x112 |
| Weight | < 5Kg |
| Enclosure Material | Stainless steel |
